Single 5° spot with 15W of focused power, complemented by a 20W video ring for underwater filming.
Built for harsh environments with a user-exchangeable 4×18650 battery pack or external battery tank via WAM Cord.
Modular. Reliable. Essential.
Worldwide payment and shipping
Custom-made unique items – delivery by arrangement

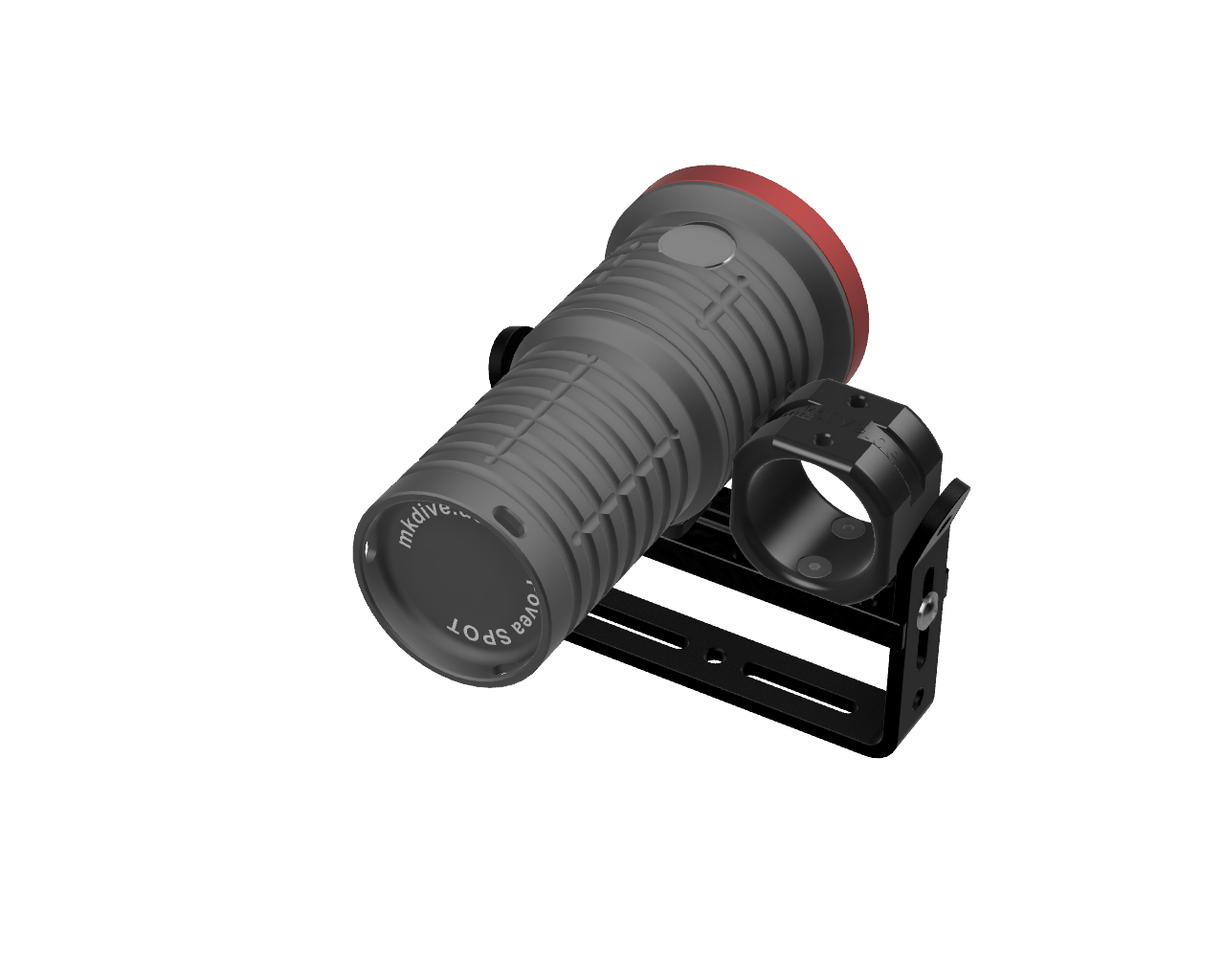

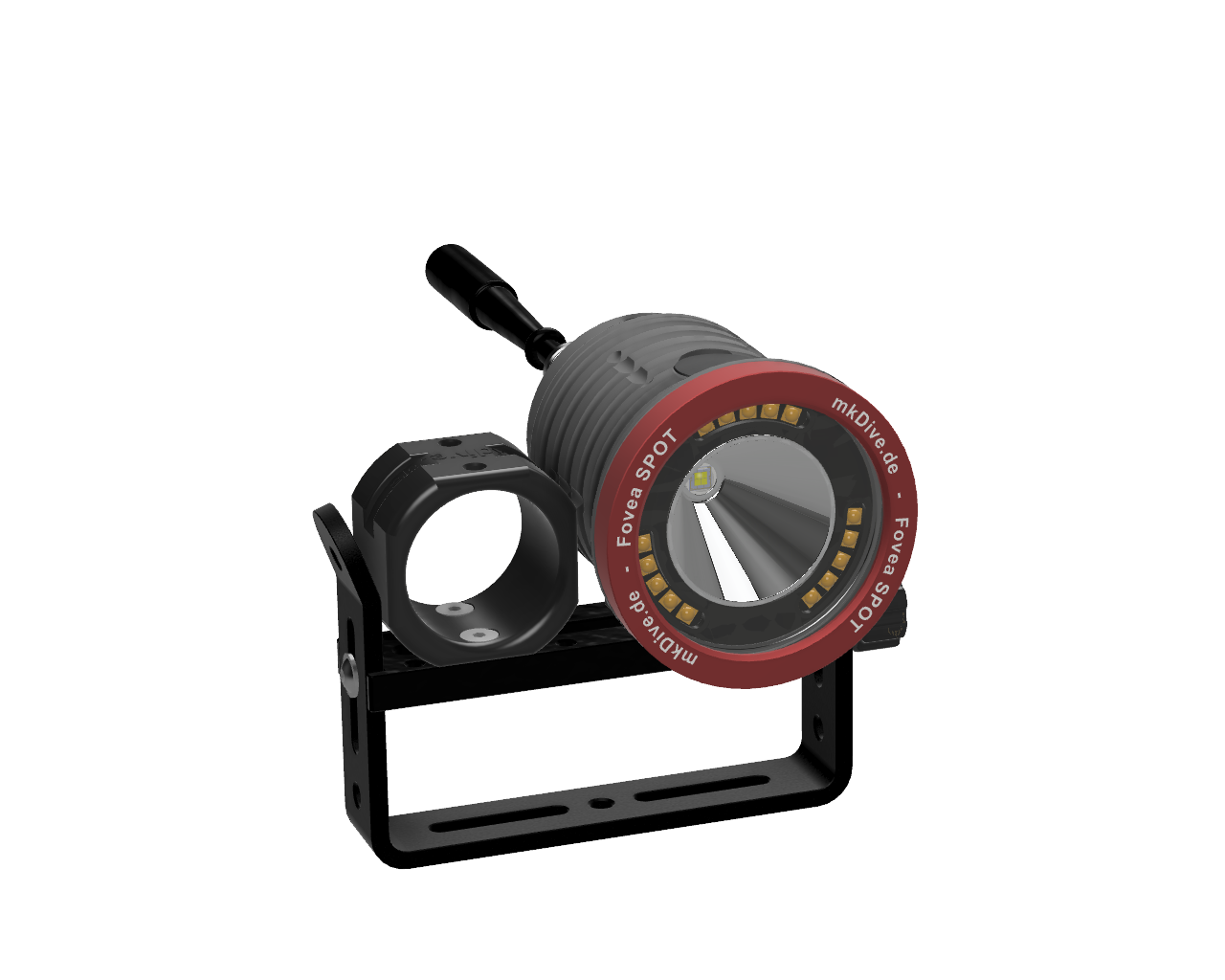

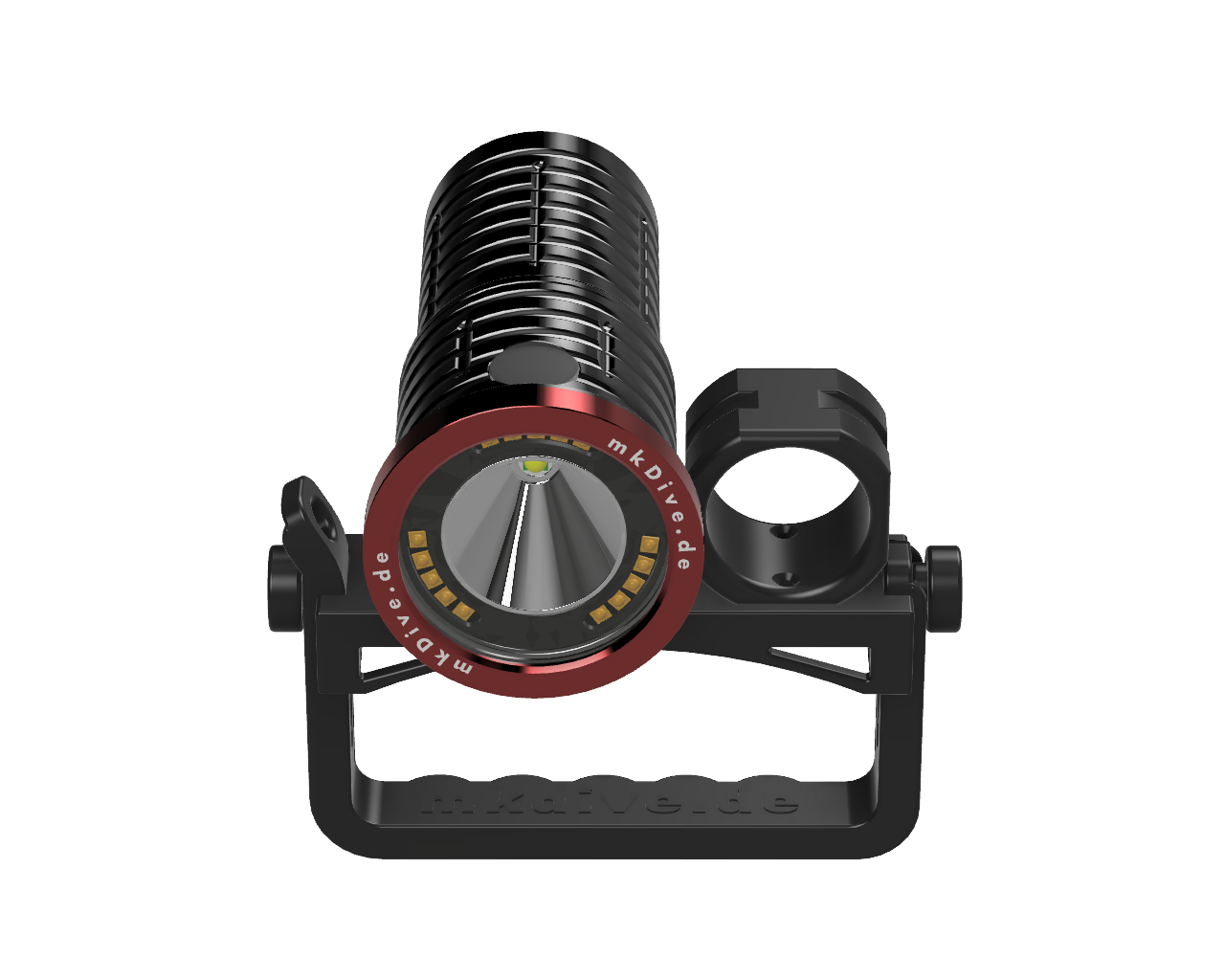

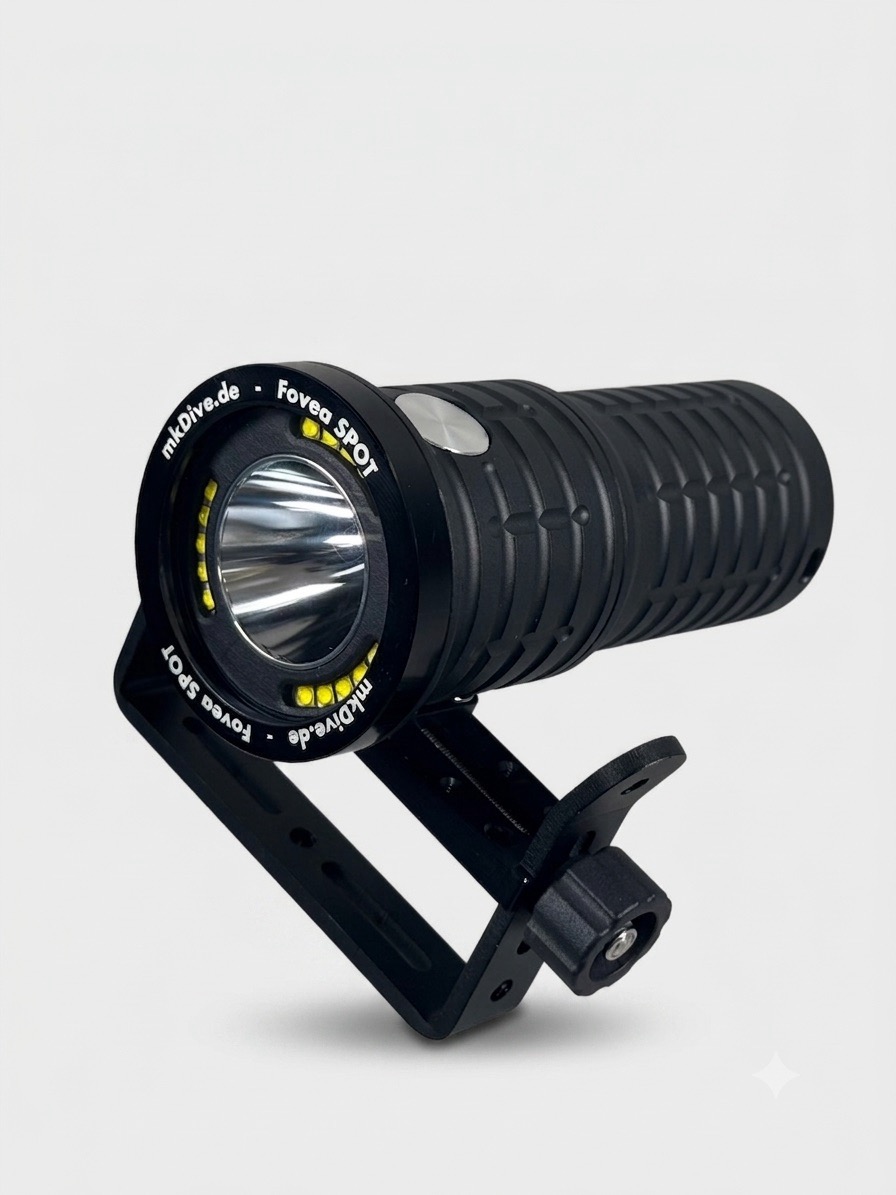

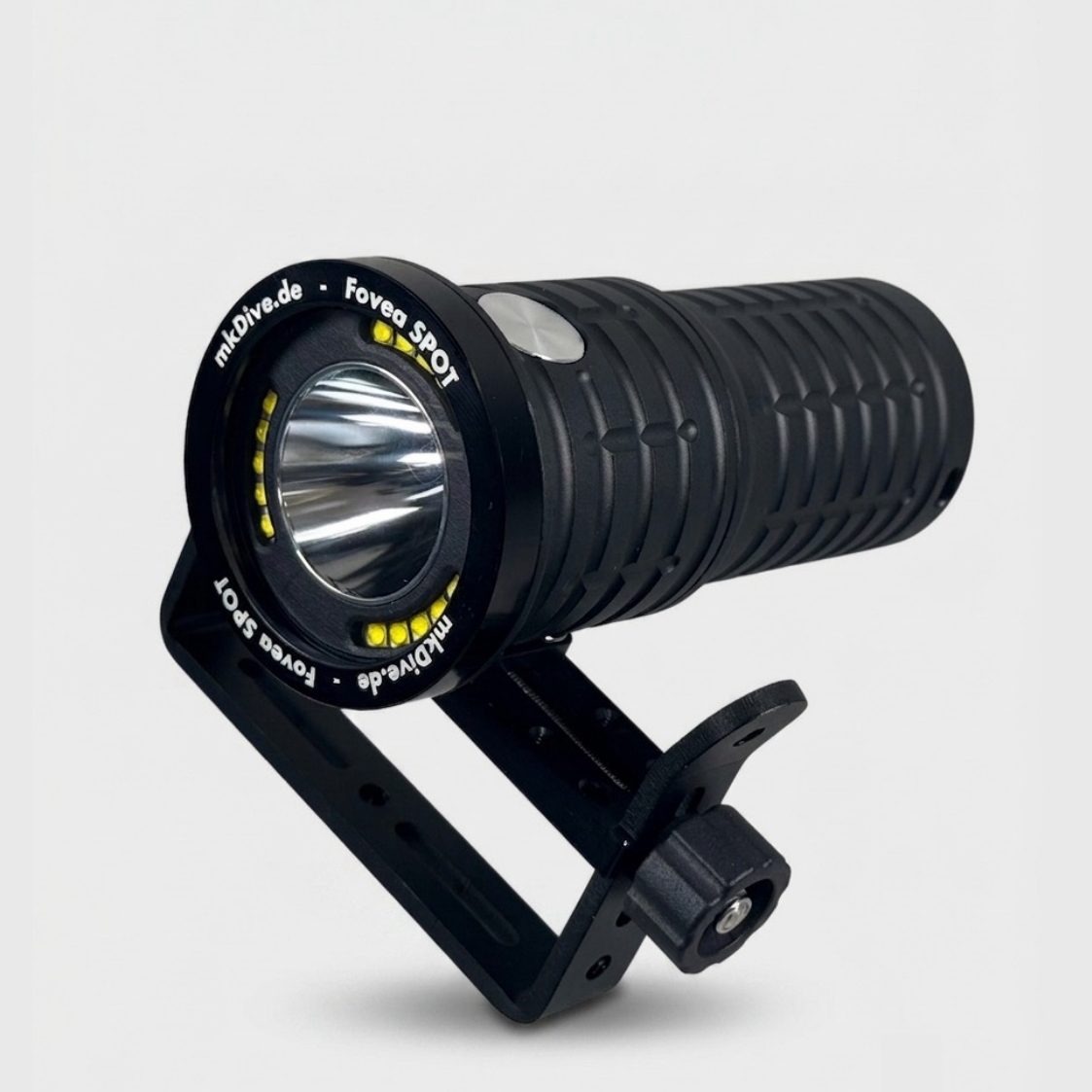

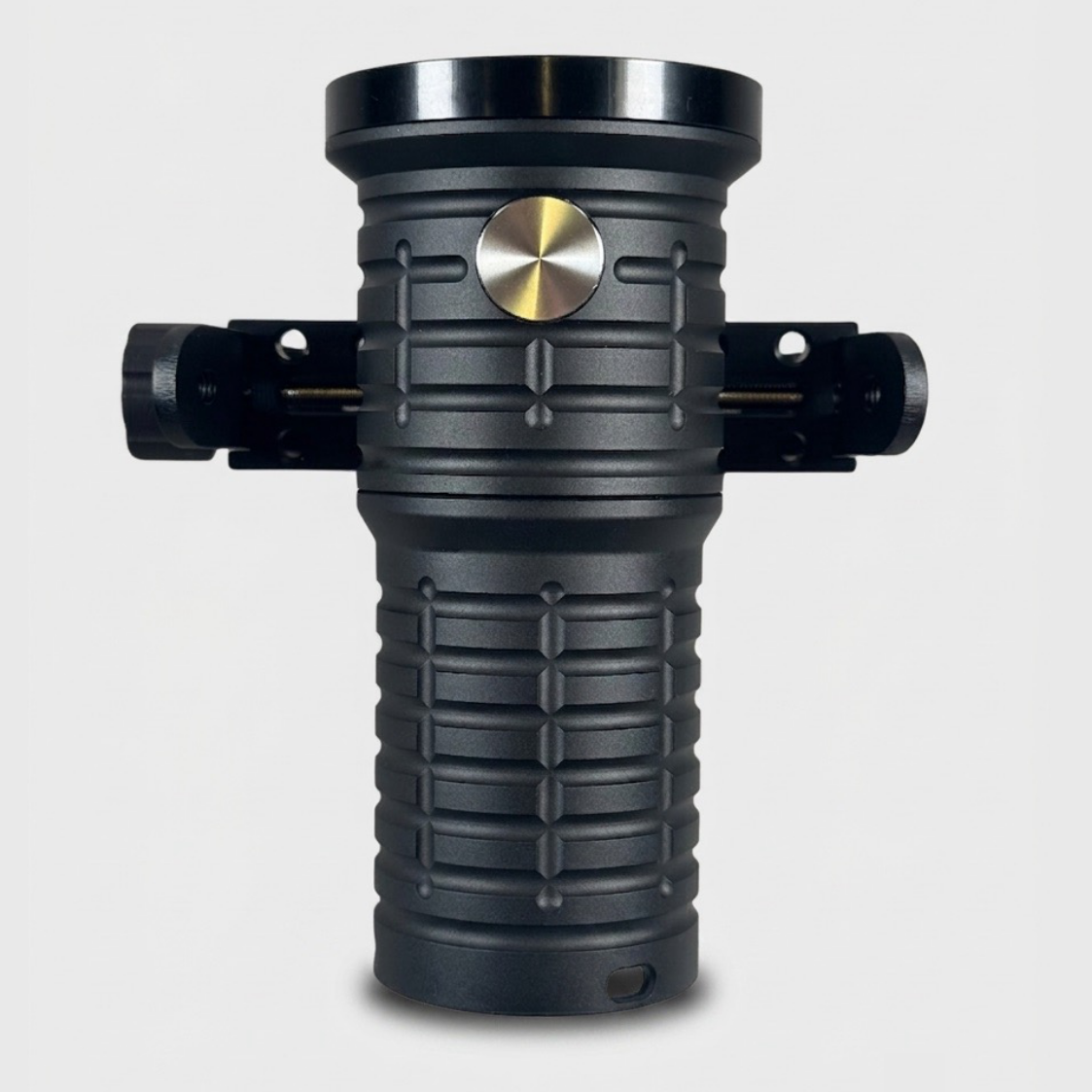

mkDive Fovea SPOT – primary technical diving light
594,00 € – 756,00 €
incl. VAT plus Shipping Costs
Delivery time: 4 - 8 Weeks
Redefining Trim and Versatility
In technical diving, every centimeter of cable is a potential failure point. The mkDive FOVEA Spot was born from a German Engineer’s need for a primary light that offers the power of a canister system with the streamlined profile of a handheld. Especially for Sidemount divers, the internal battery backend removes the ‘cable clutter,’ allowing for a perfect, snag-free silhouette in tight restrictions.The Modular Core
Why own two lights when you can have one adaptable system? Our unique interchangeable backend allows you to customize your setup per dive. Use the internal module for maximum mobility or connect the external adapter to power your mkDive FOVEA Spot through your existing E/O cord canister or one from mkDive.Core Features

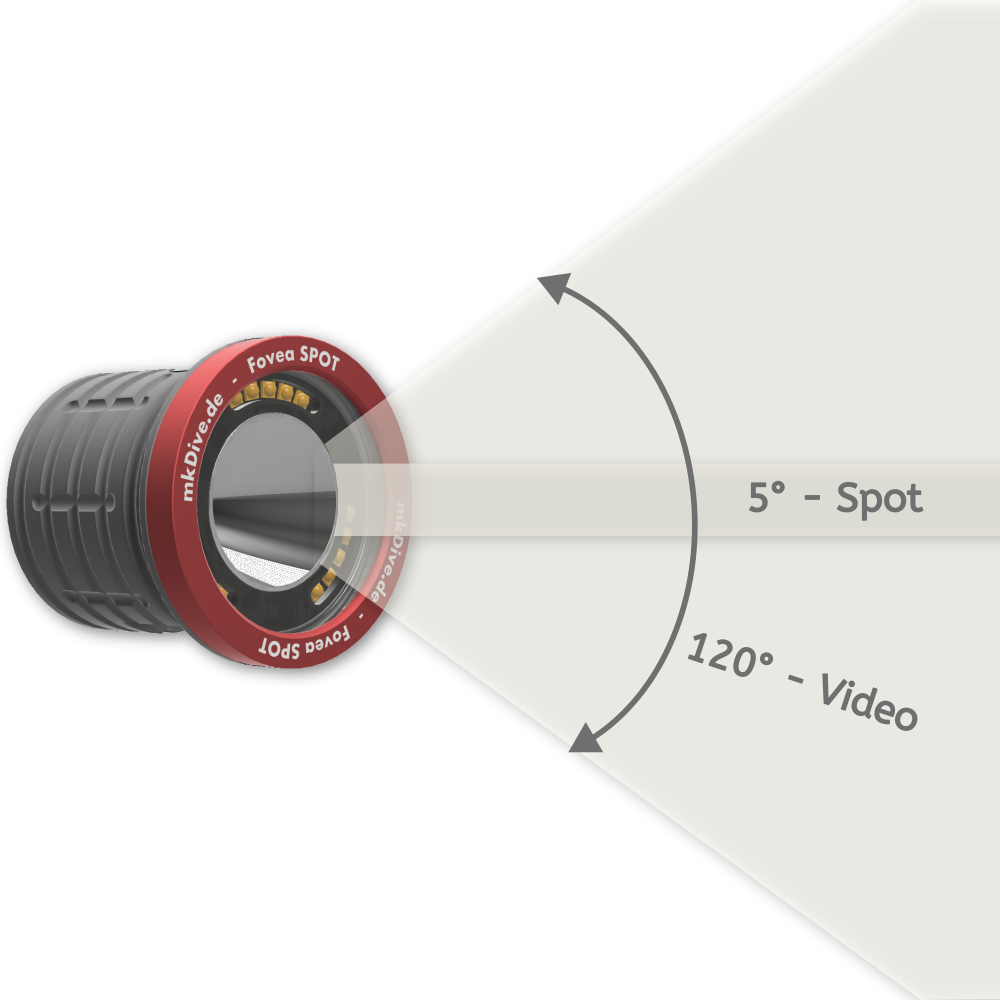

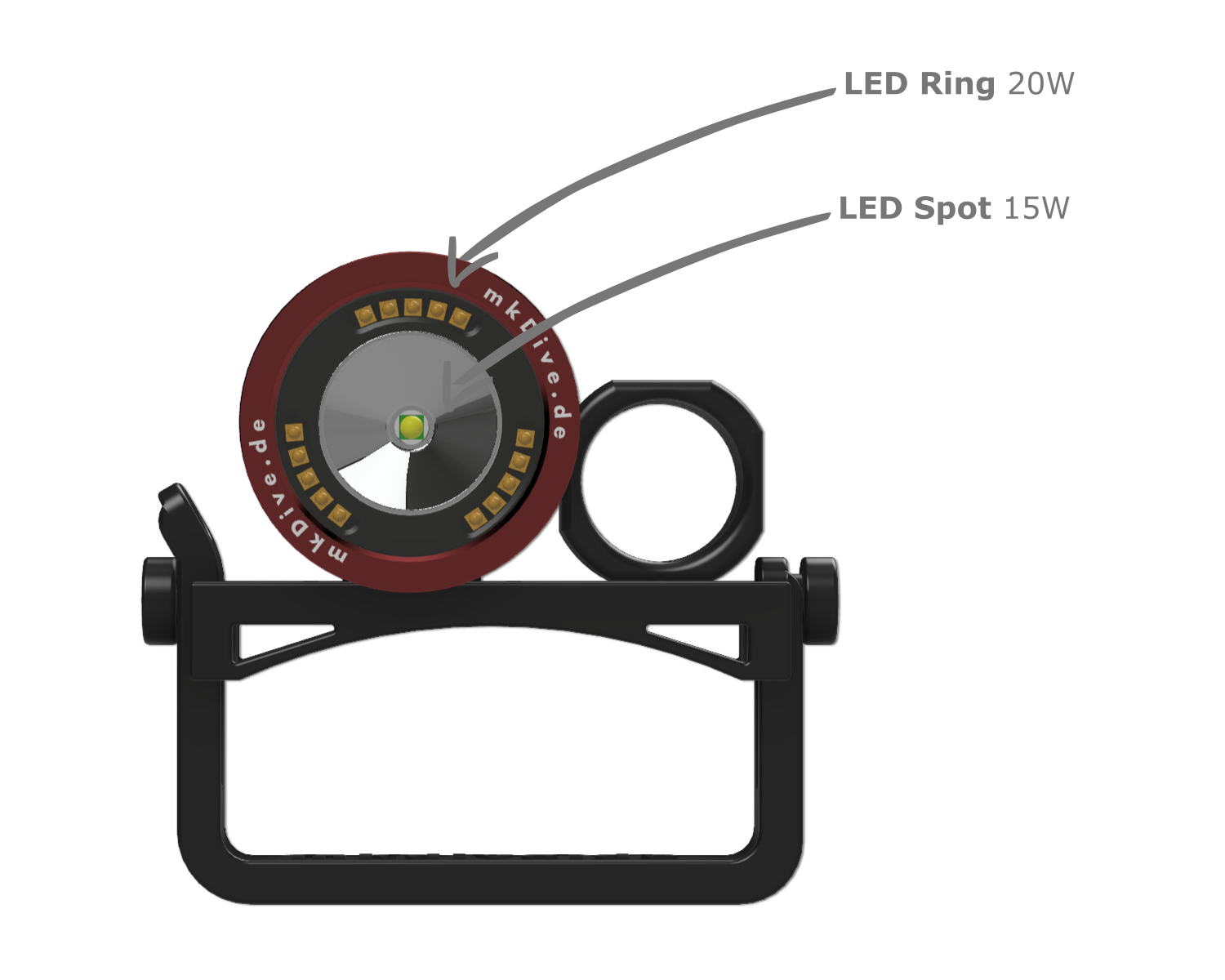

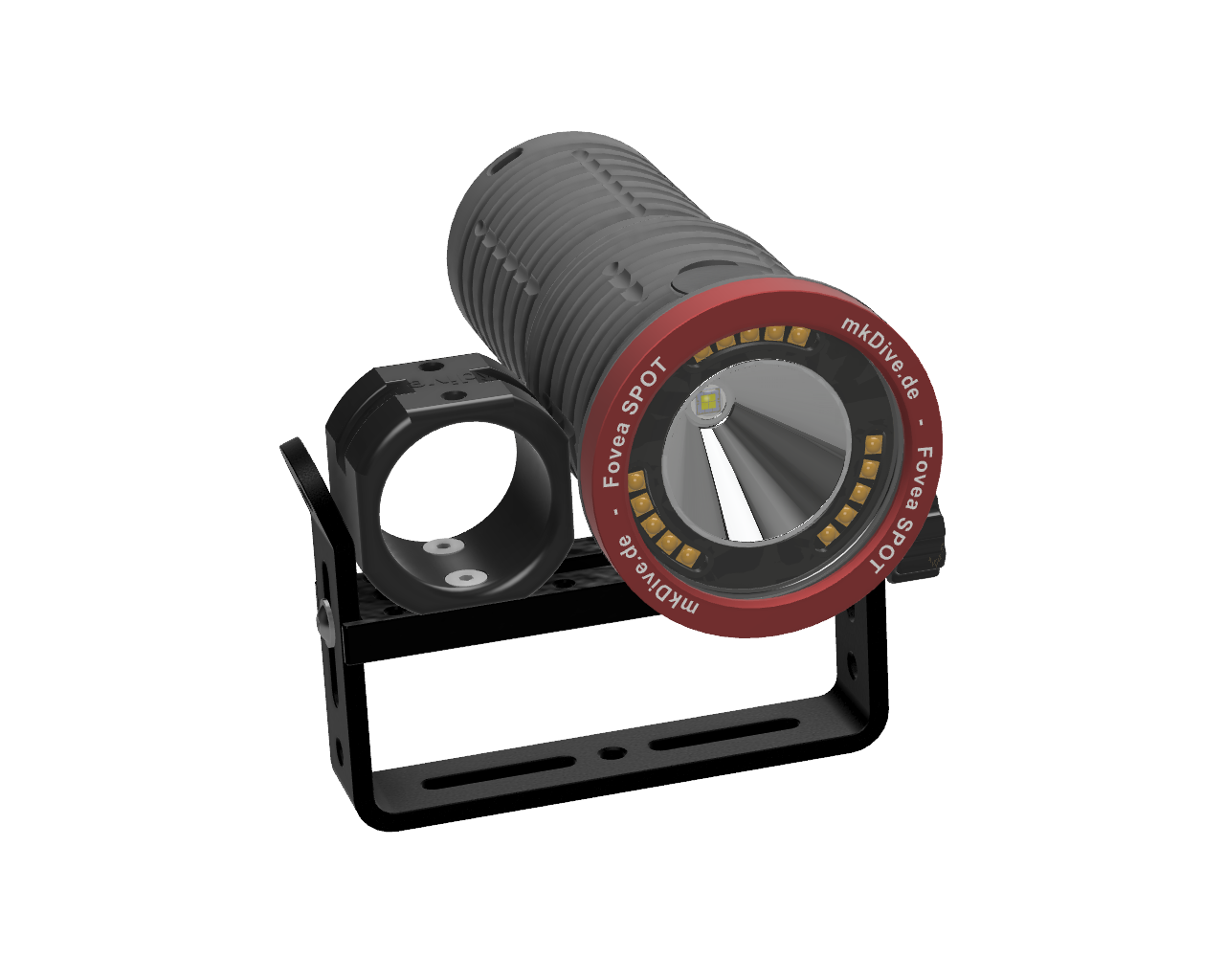

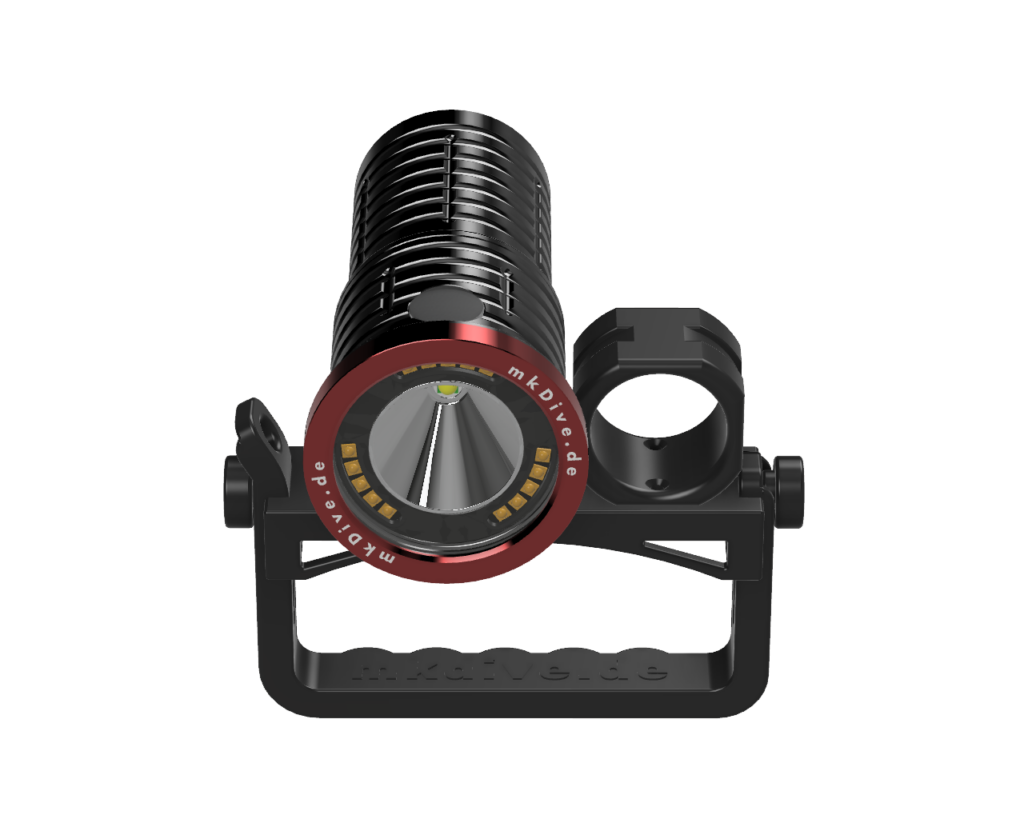

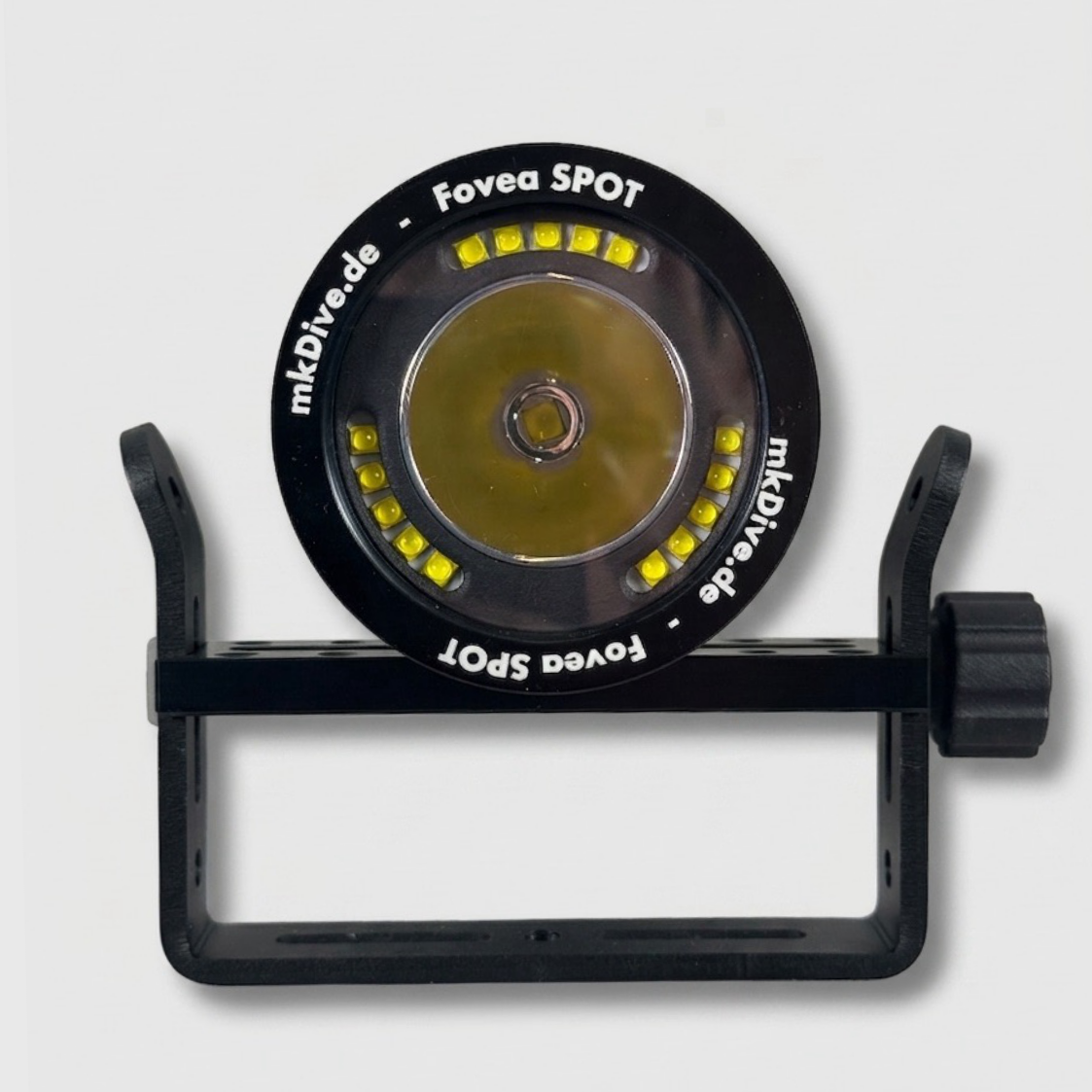

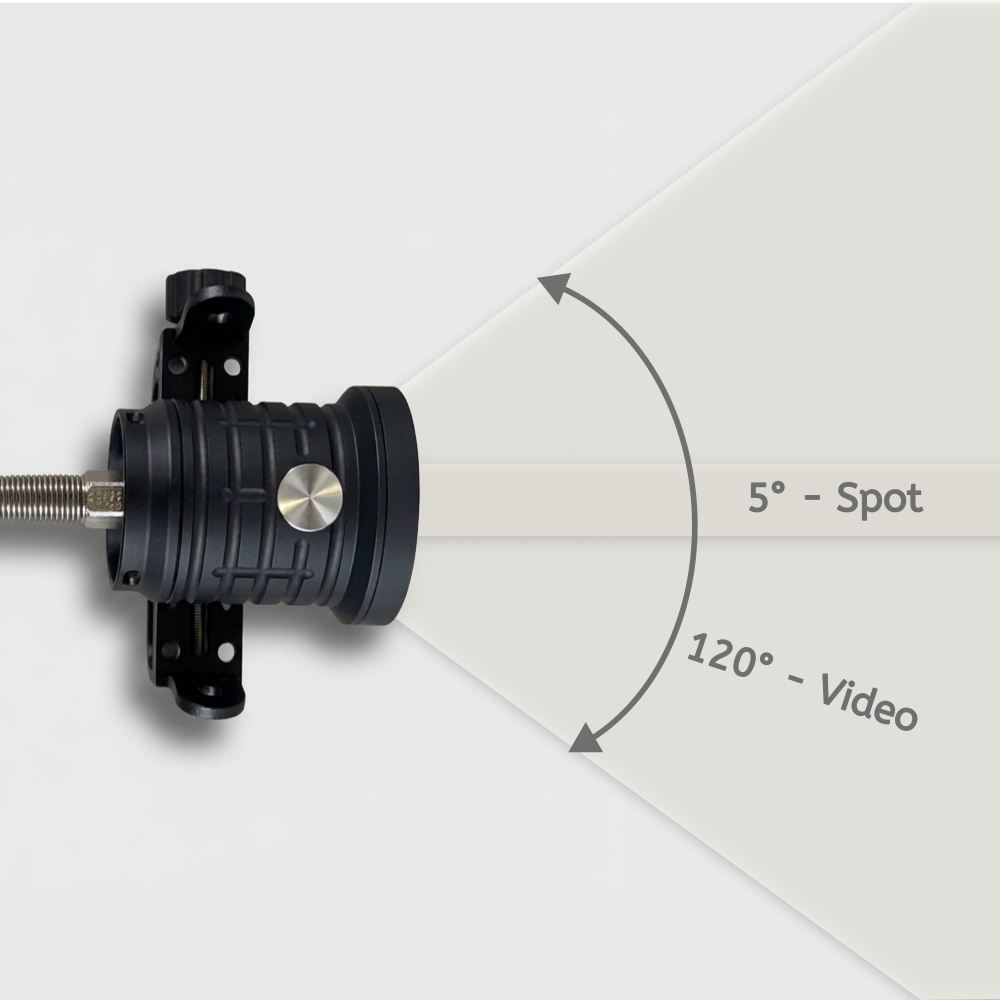

True 5° Spot & Wide 120° Video Light

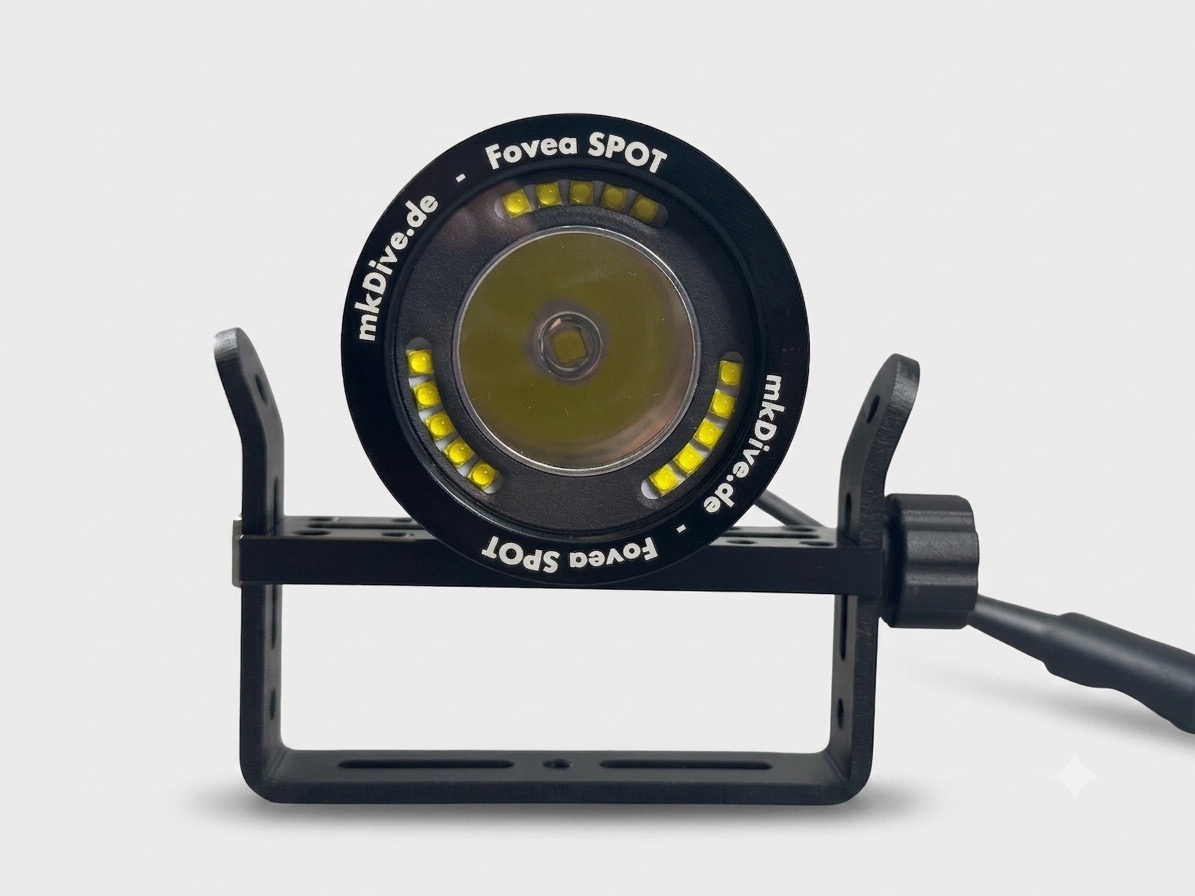

The mkDive Fovea SPOT combines a 5° beam with a smooth, ultra-wide 120° video flood. The tight spot cuts through murky water for crystal-clear team signaling, while the separate LED ring floods your field of view for perfect underwater filming. Switch between spot and video ring with a single button.
Maximum Modularity

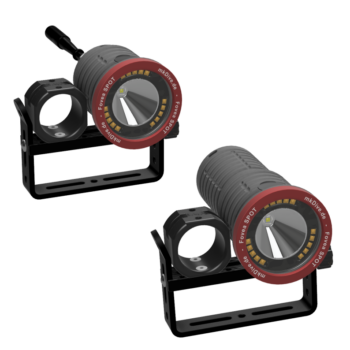

Achieving maximum modularity you will get an interchangeable dive light lid:

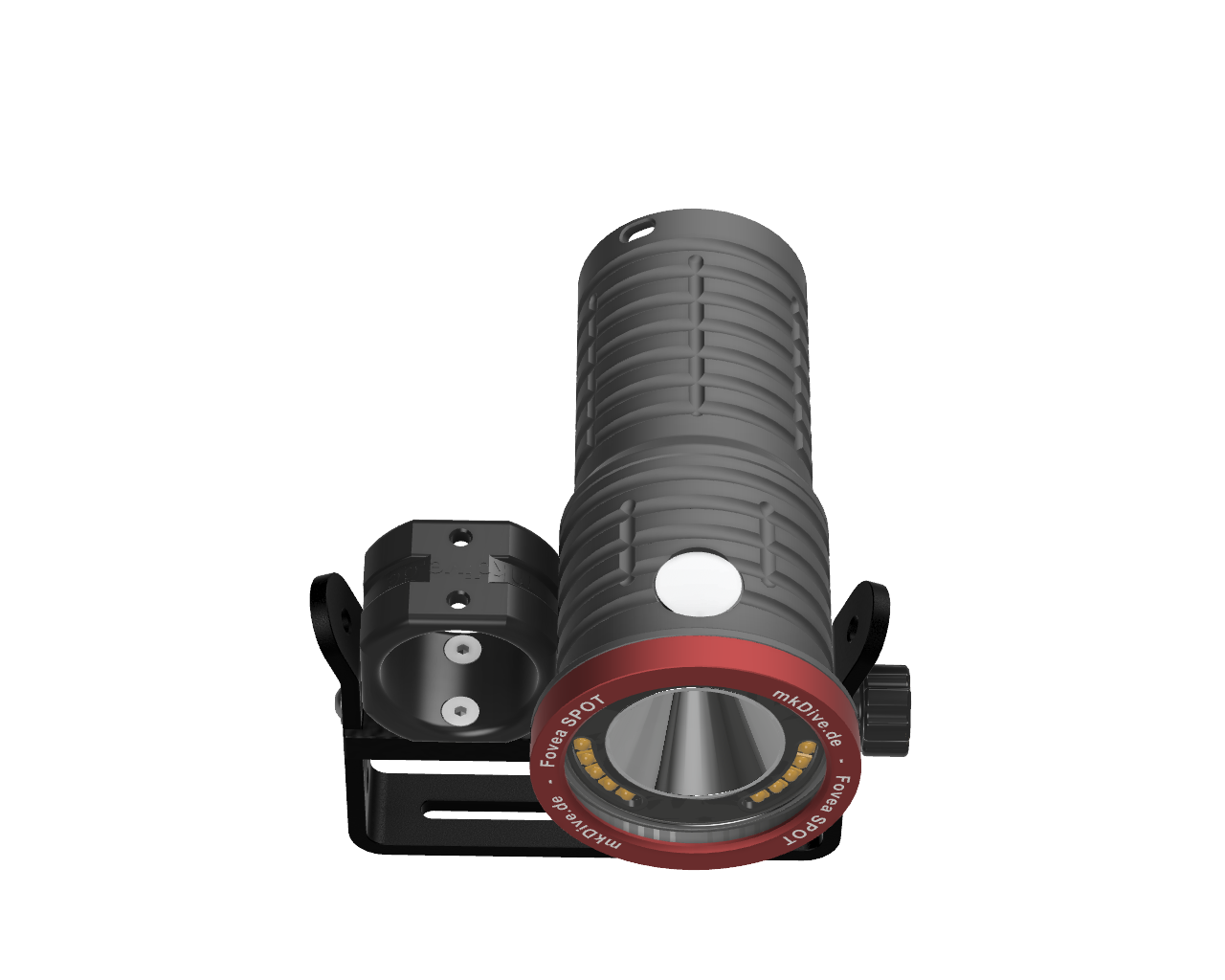

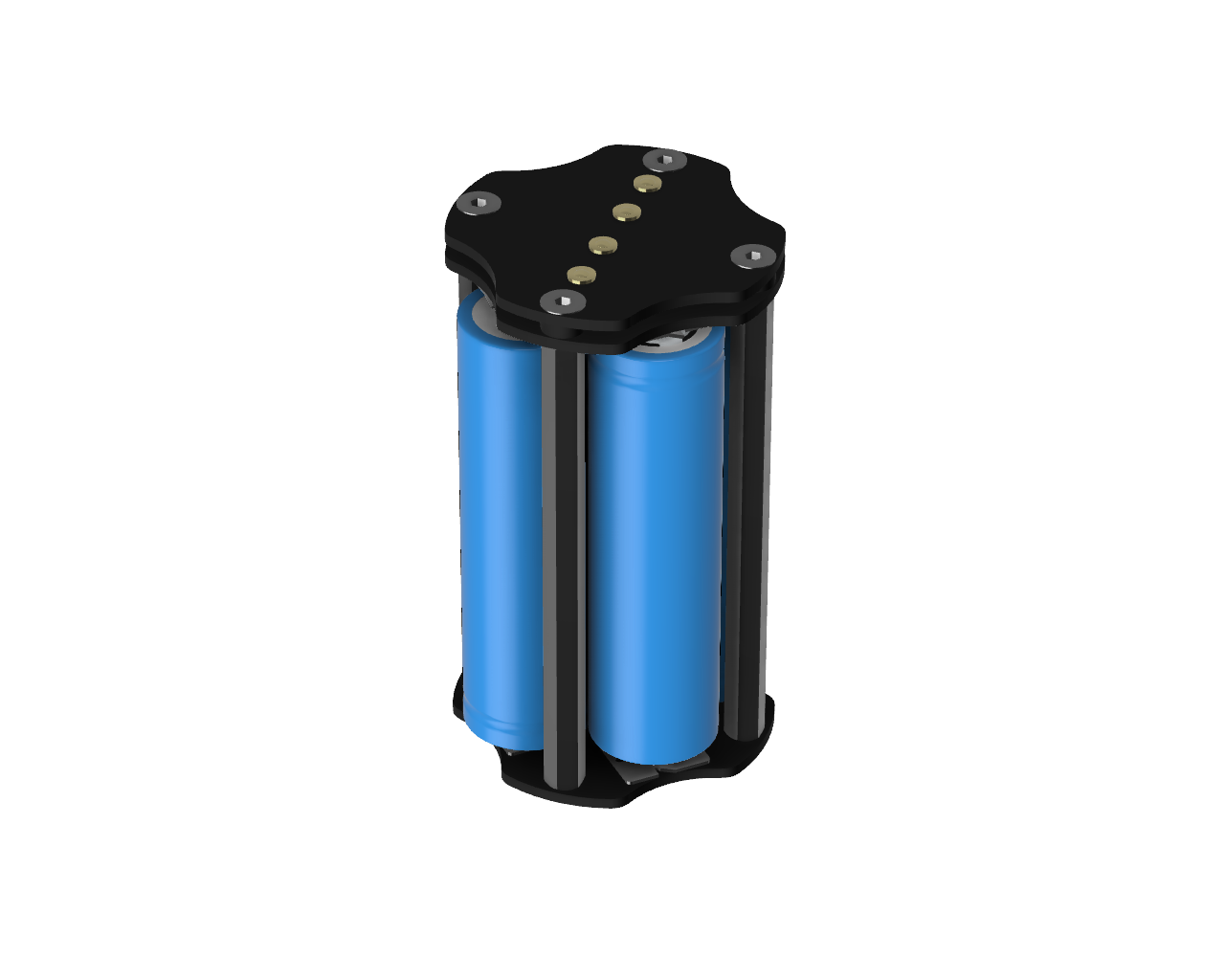

- Cordless Independence: Drop in 4x standard 18650 Li-Ion cells for a self-contained, lightweight, canister-free dive to convert the mkDive FOVEA Spot to a Cable-free Sidemount light.

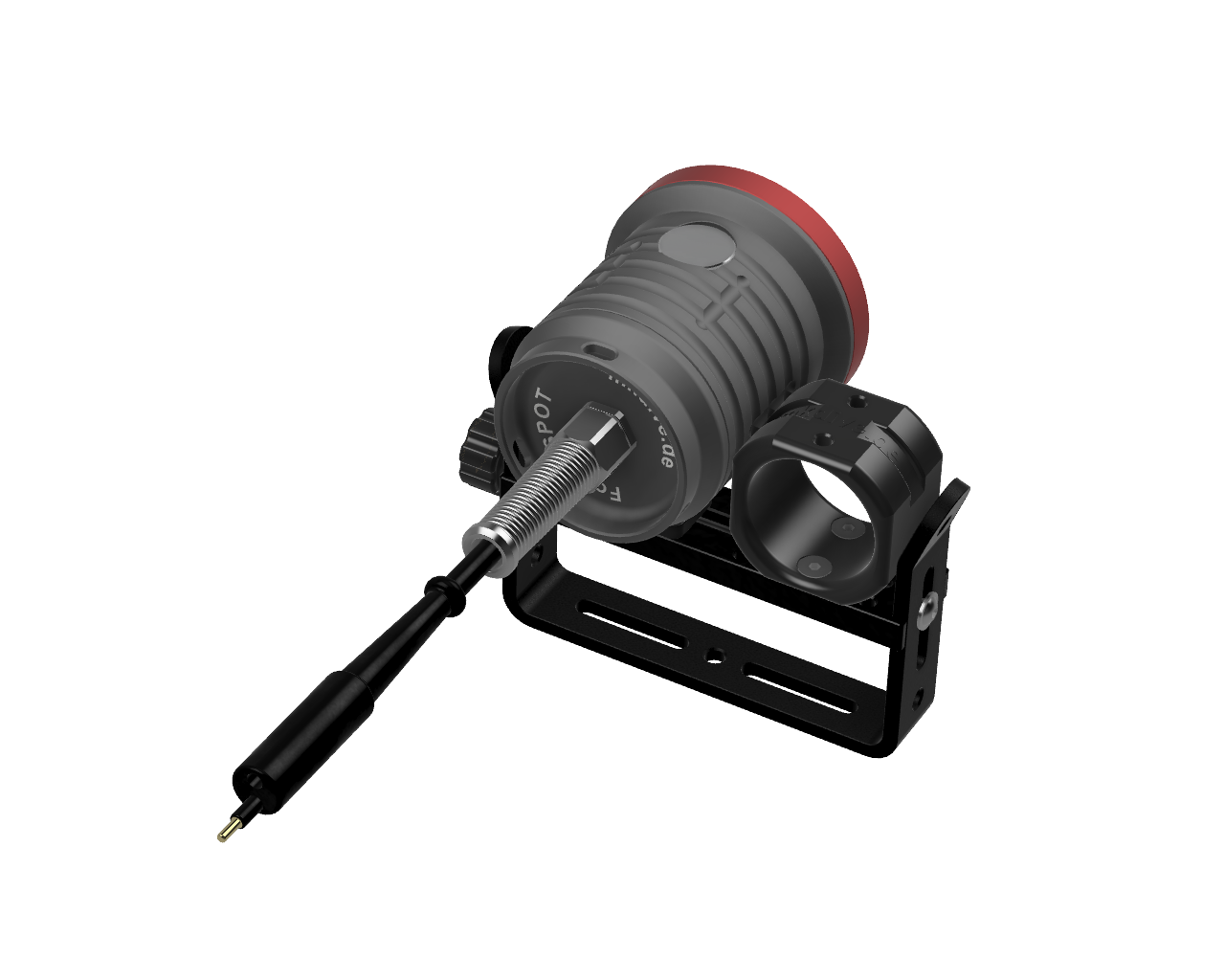

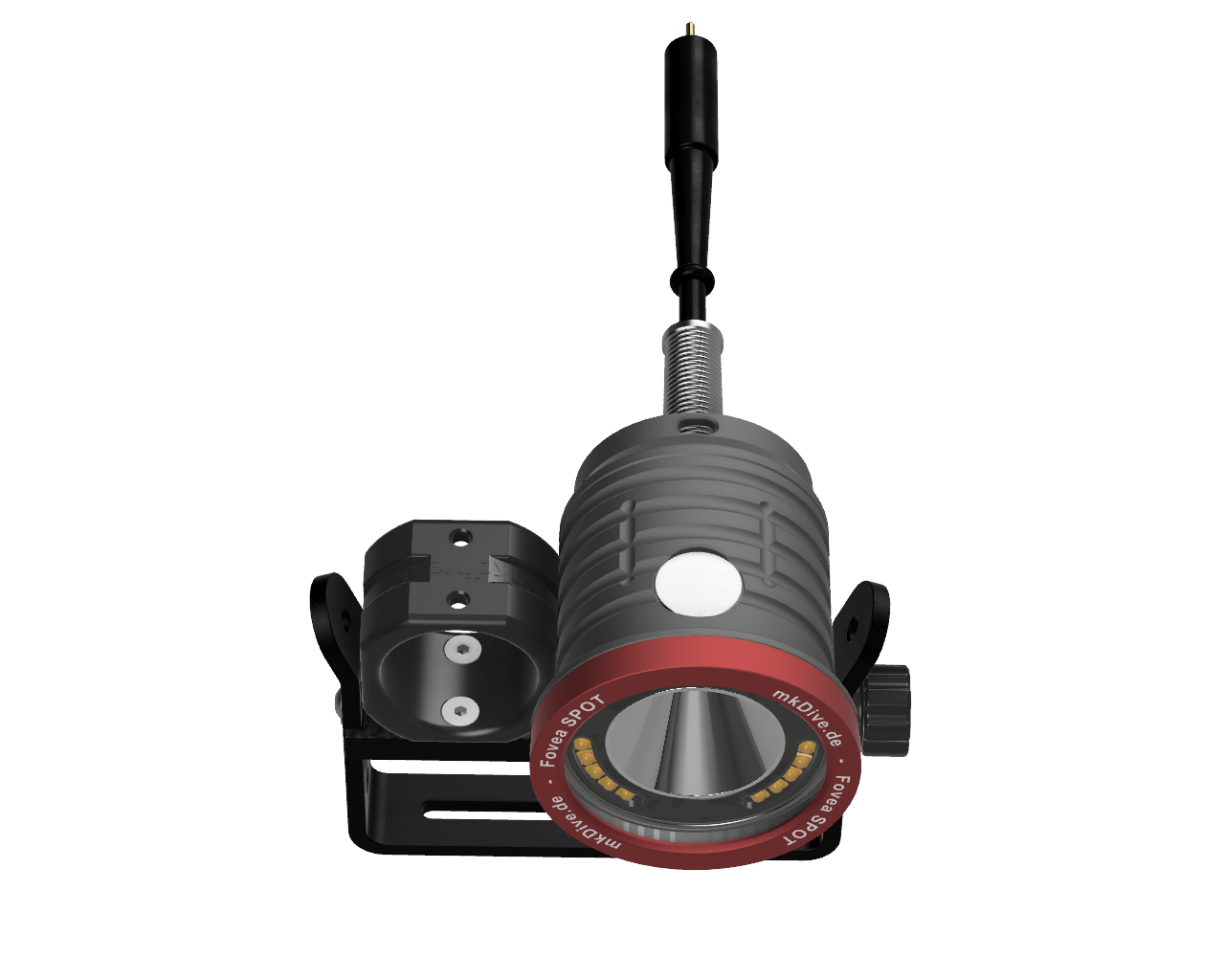

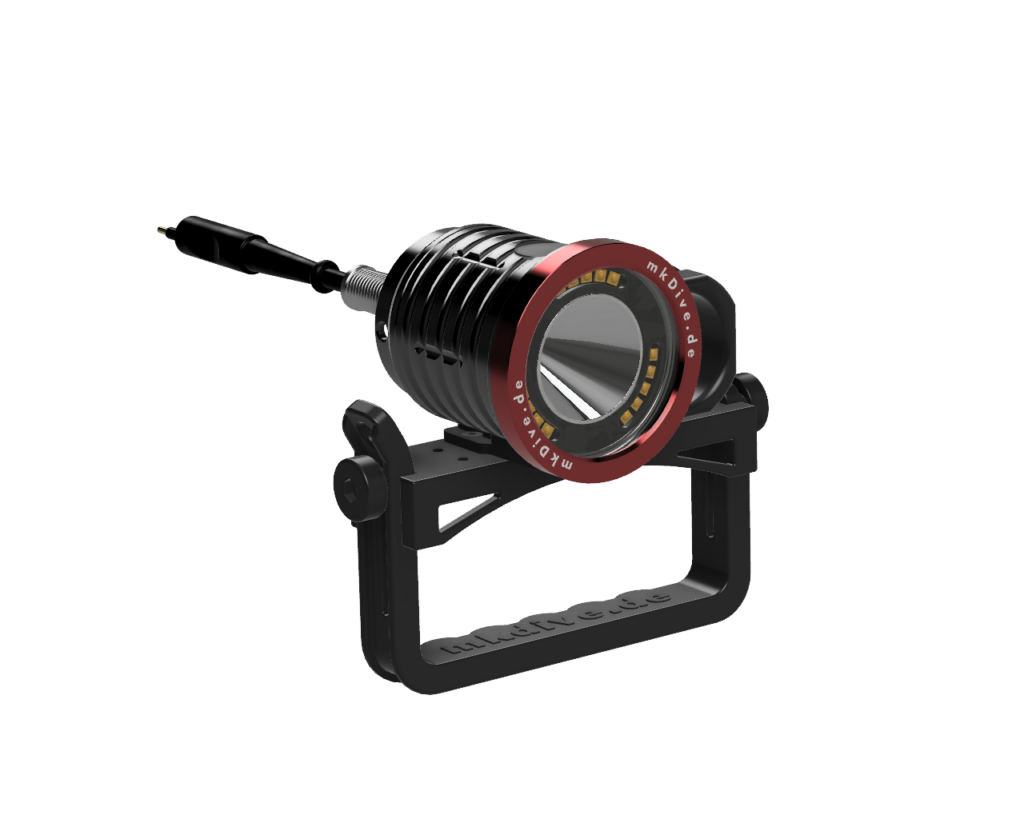

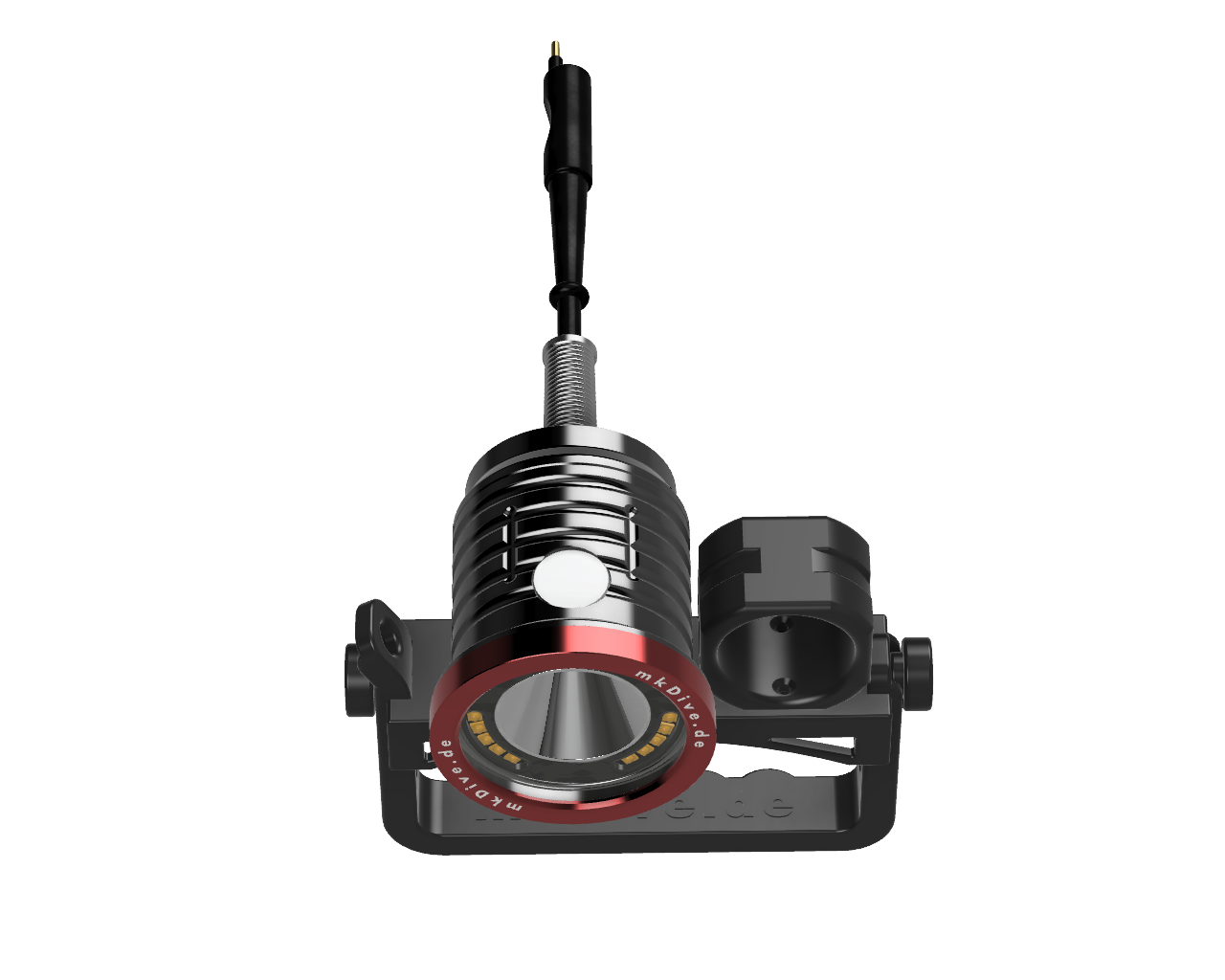

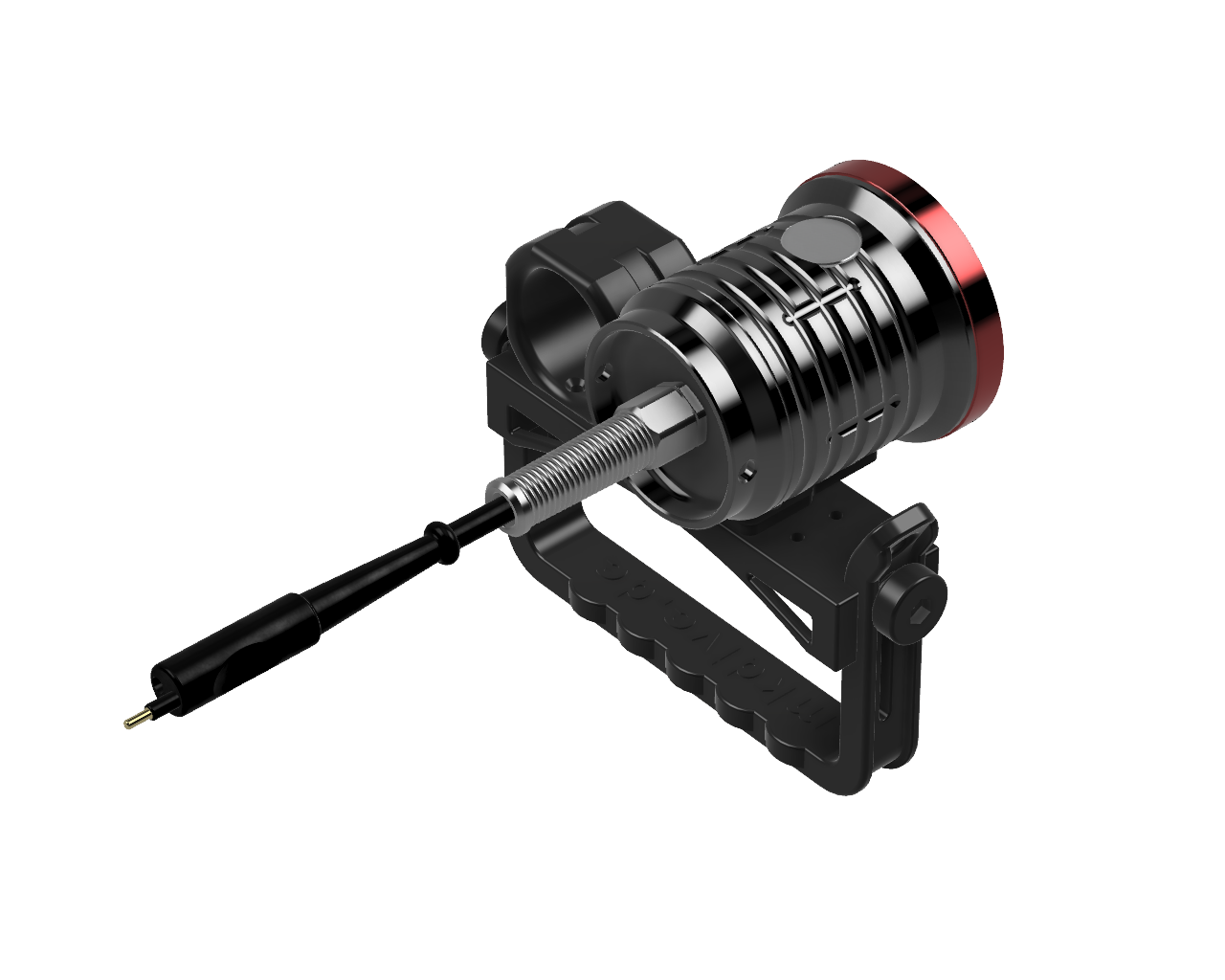

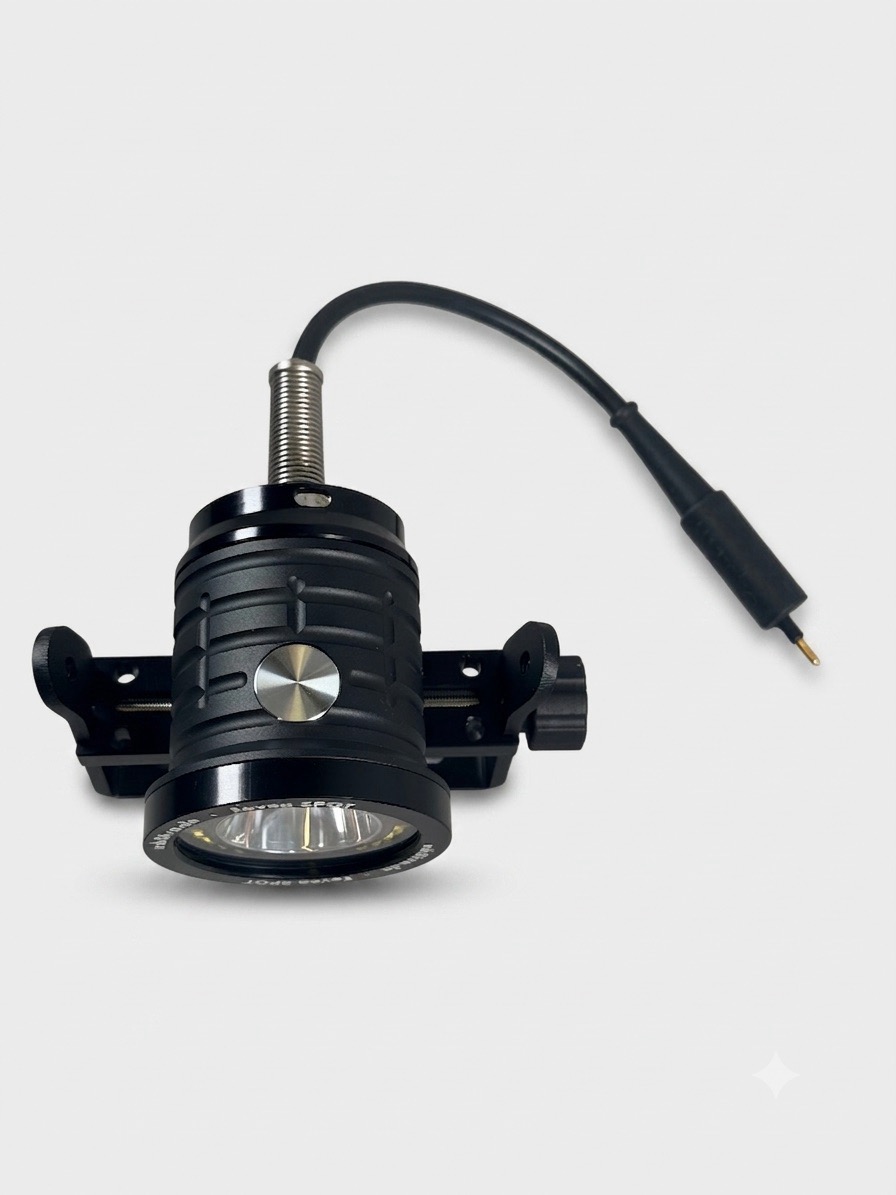

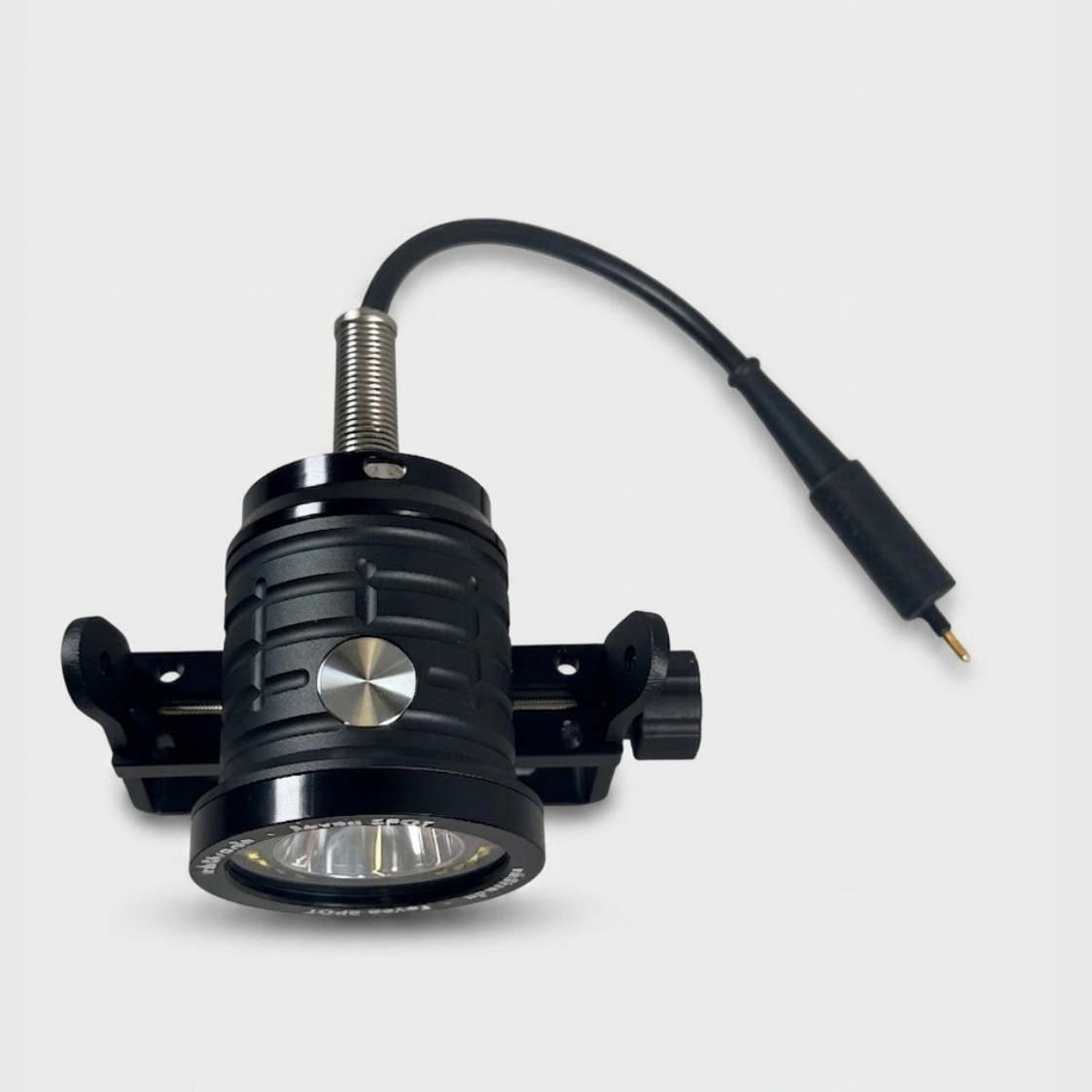

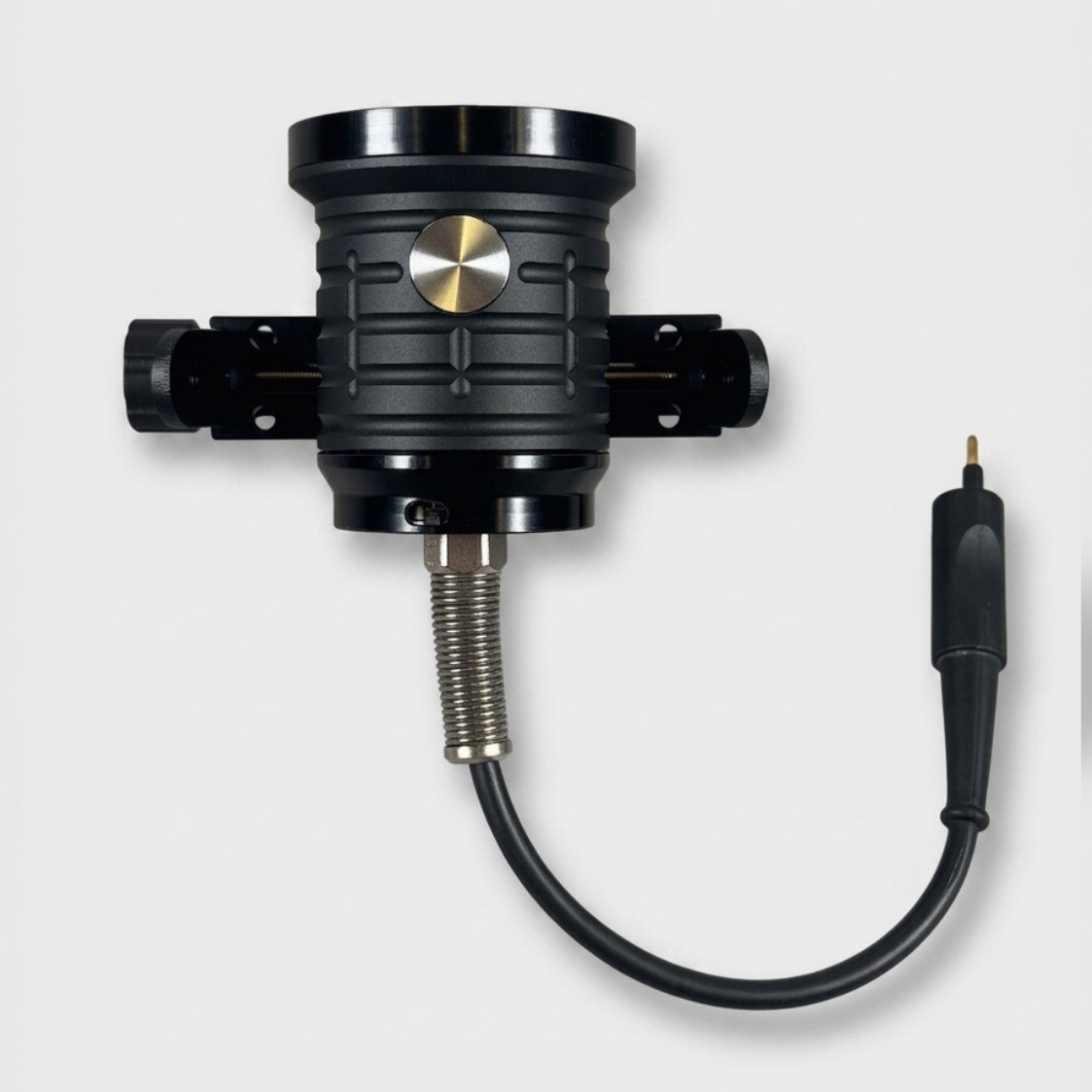

- Corded Endurance: Swap the lid for a standard WAM-Cord and connect it to your external canister for virtually unlimited burntime and drysuit heating compatibility.
3S and 4S Accutanks from various Manufacturerers like YellowDiving, SANTI, SEAYA are supported.

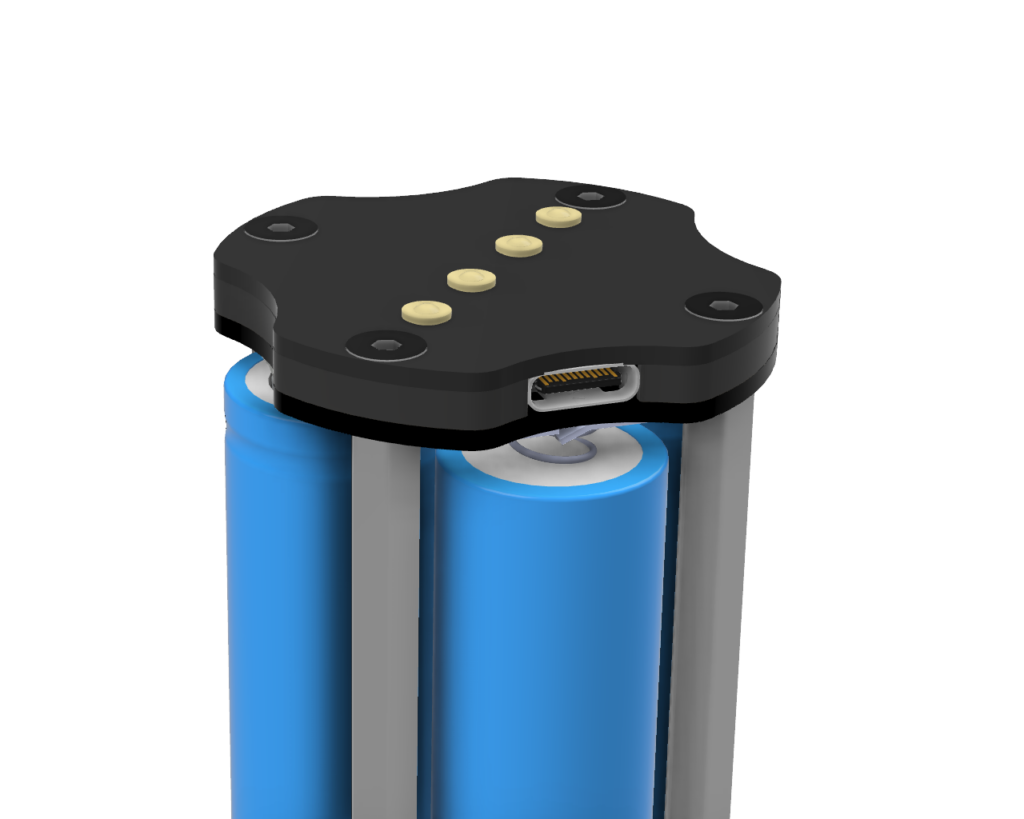

Zero Battery Dependency

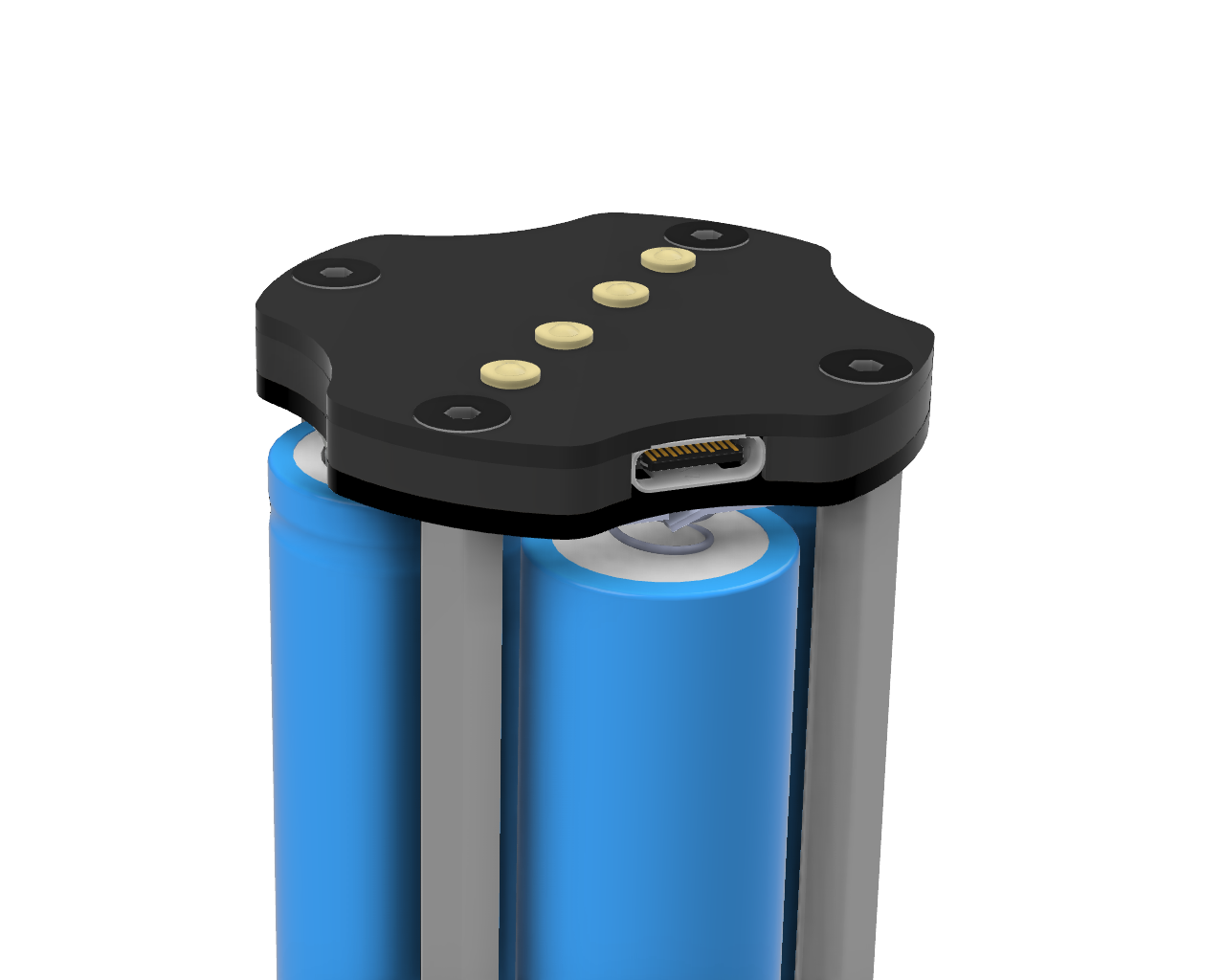

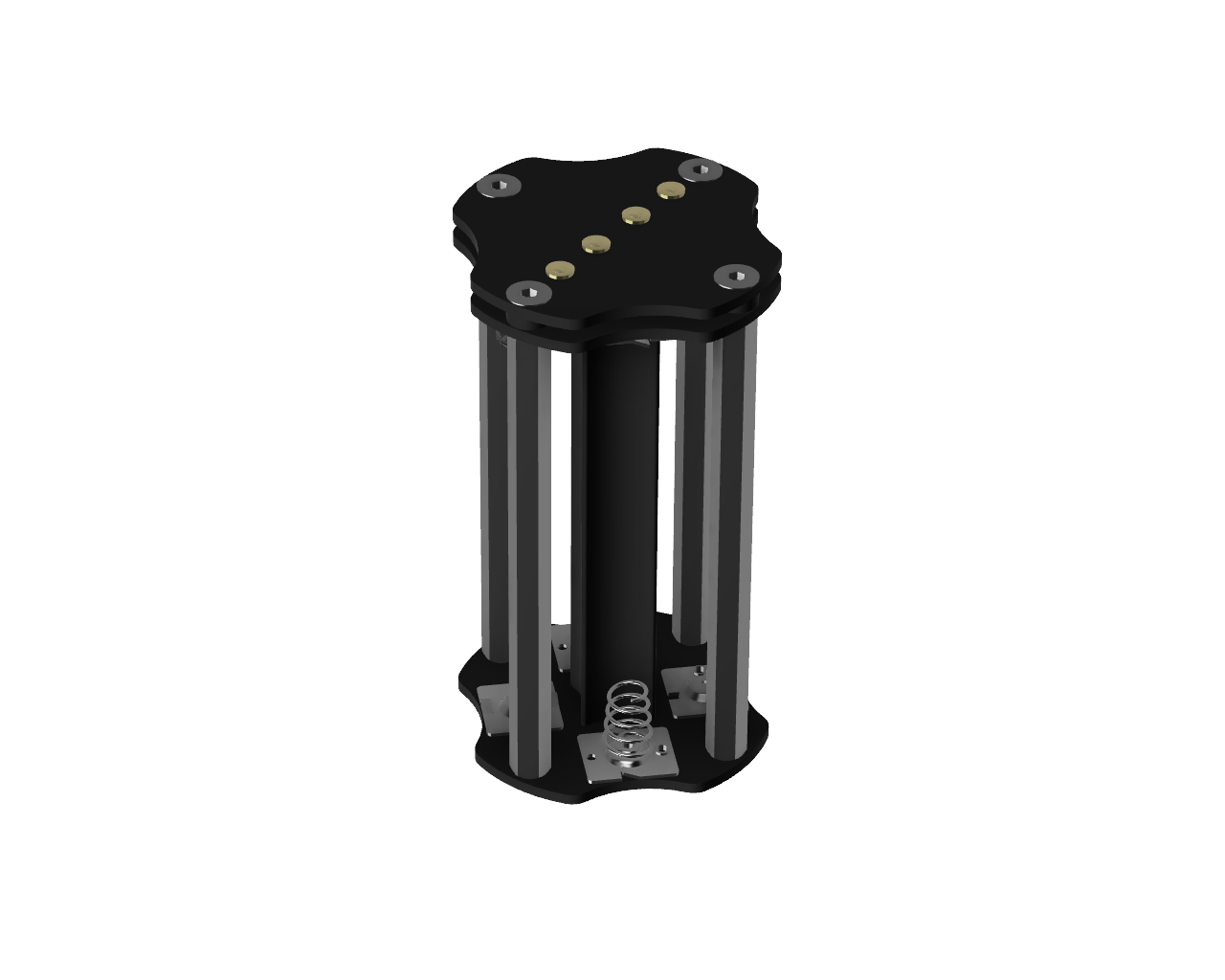

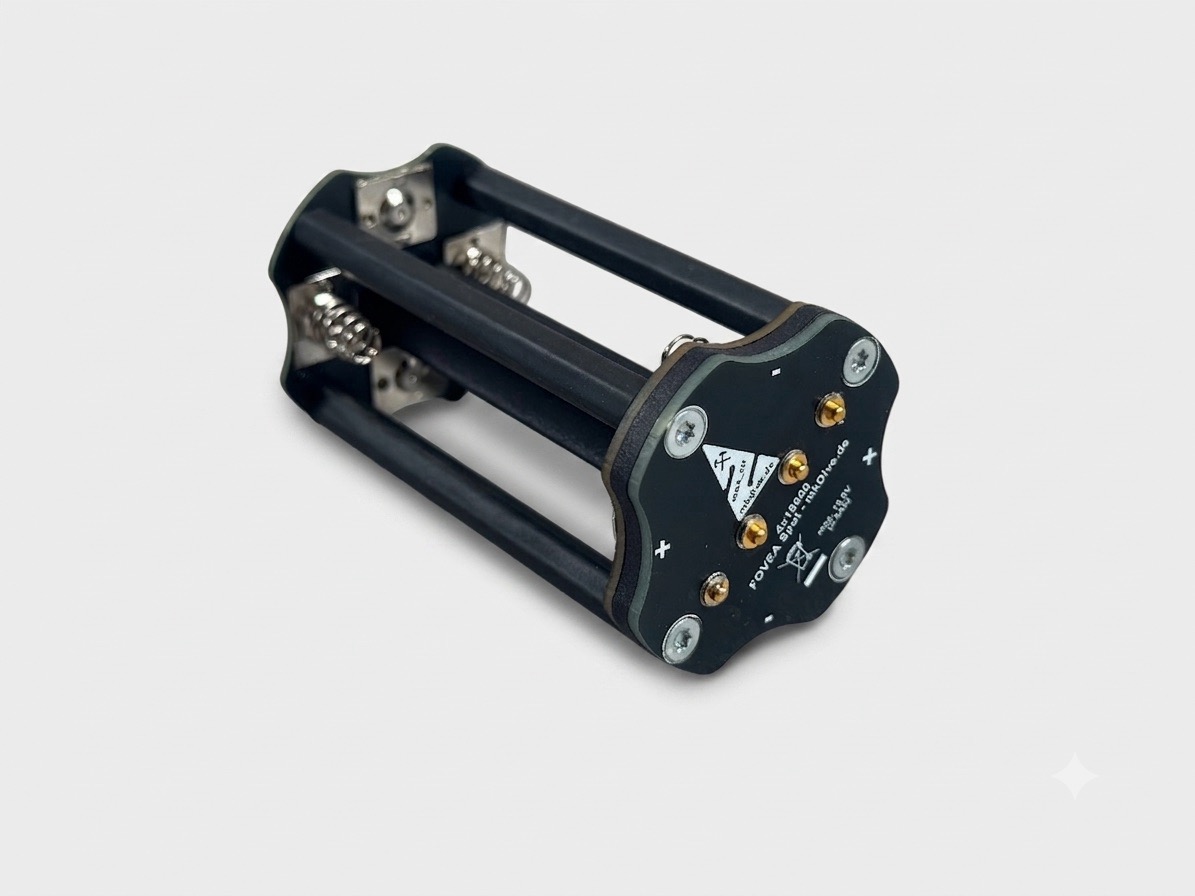

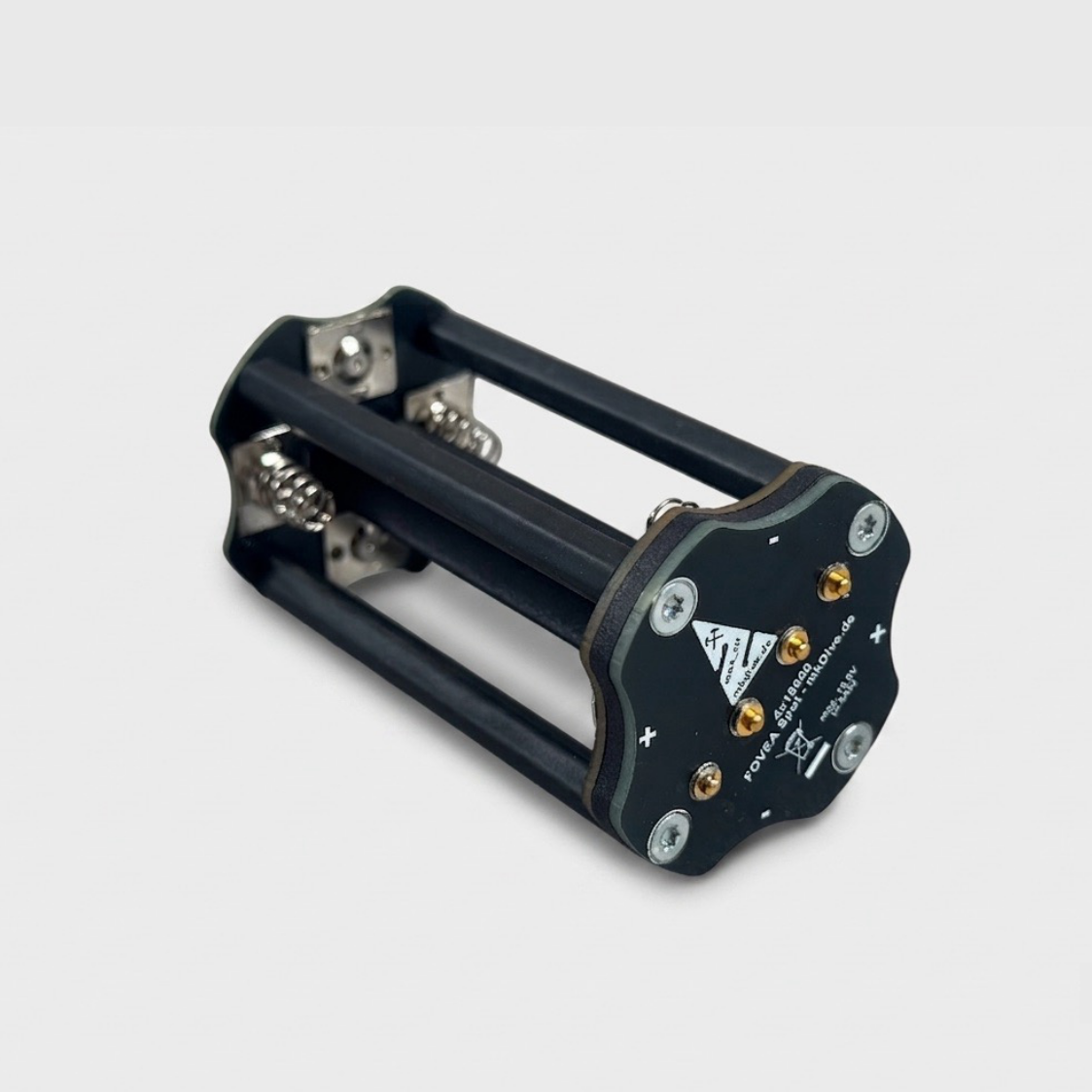

The mkDive Fovea SPOT doesn’t force you into expensive, proprietary battery systems. The internal frame holds standard, unprotected flat-top 18650 Li-Ion cells. You can swap them yourself at the dive site in seconds. BMS is included to protect your cells.
Smart Tech & Heavy-Duty Controls
- 32-Bit Microcontroller: Active thermal management prevents overheating on deck and protects your LEDs.

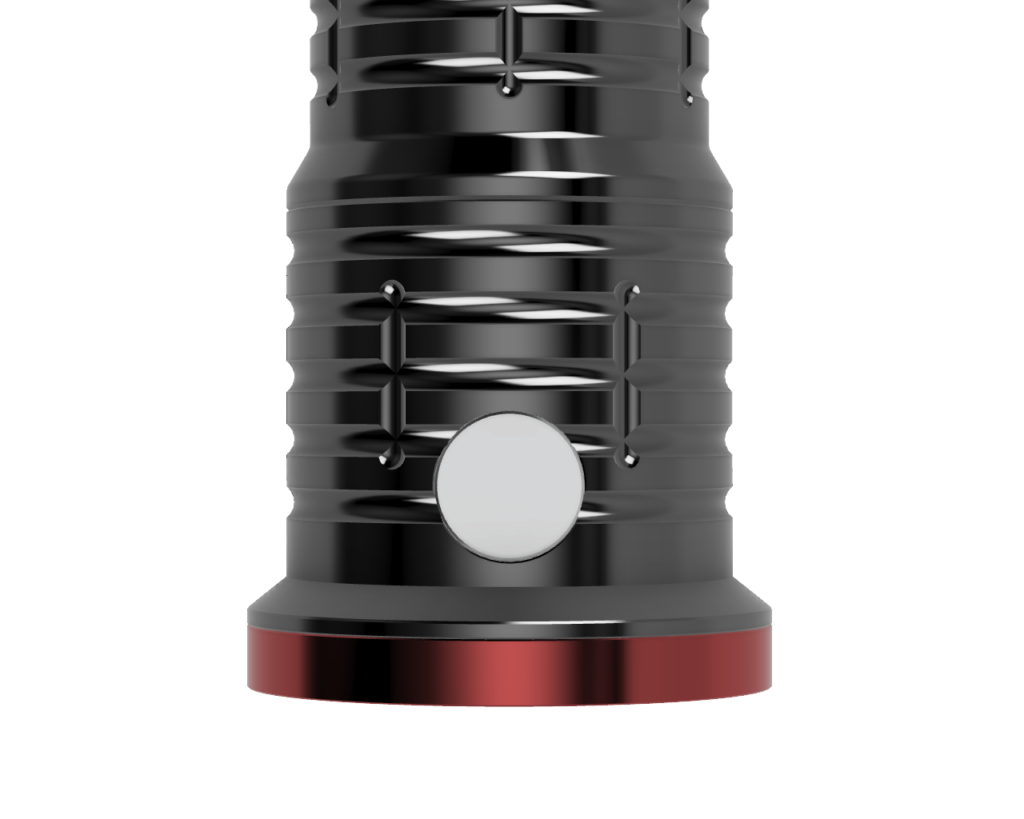

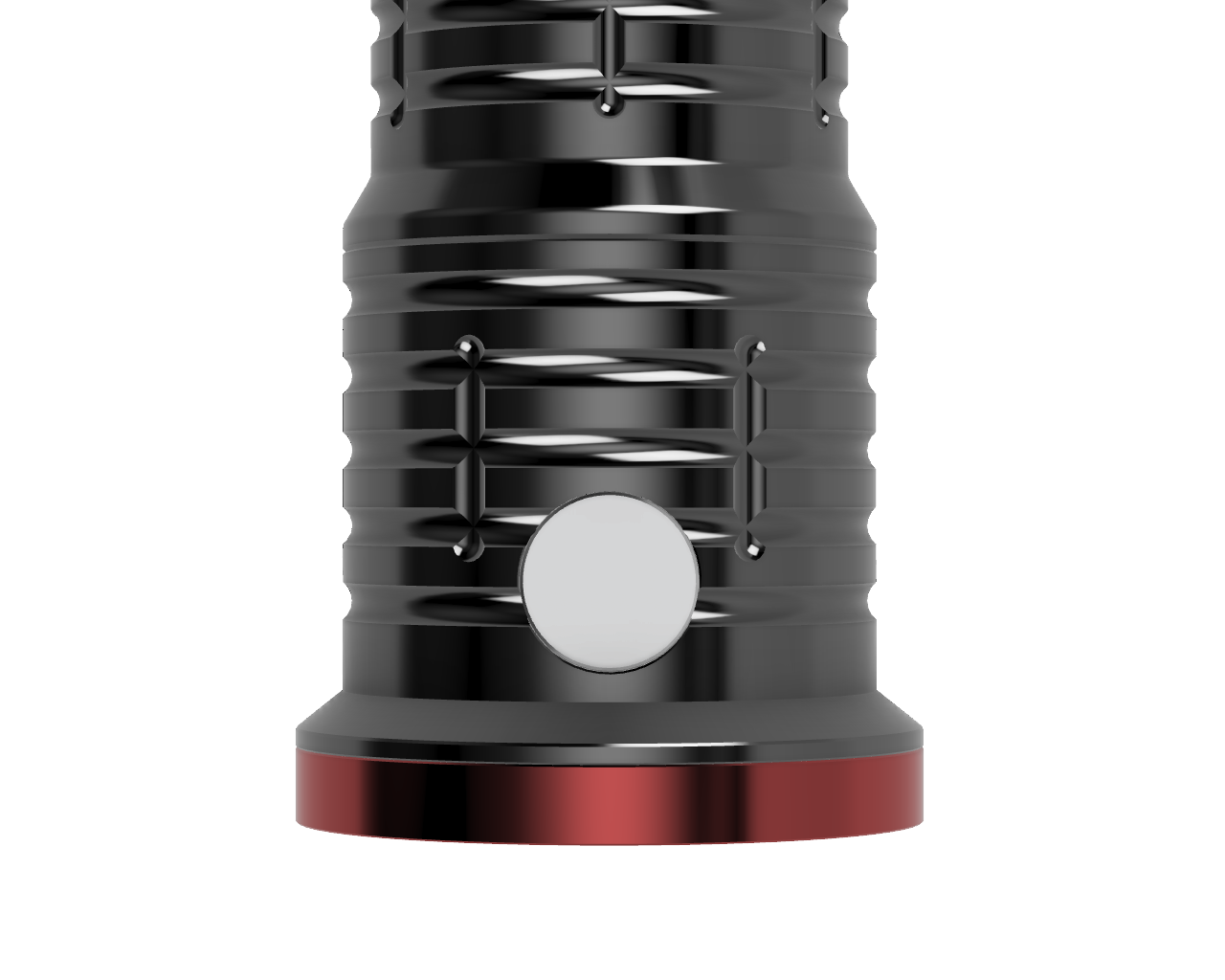

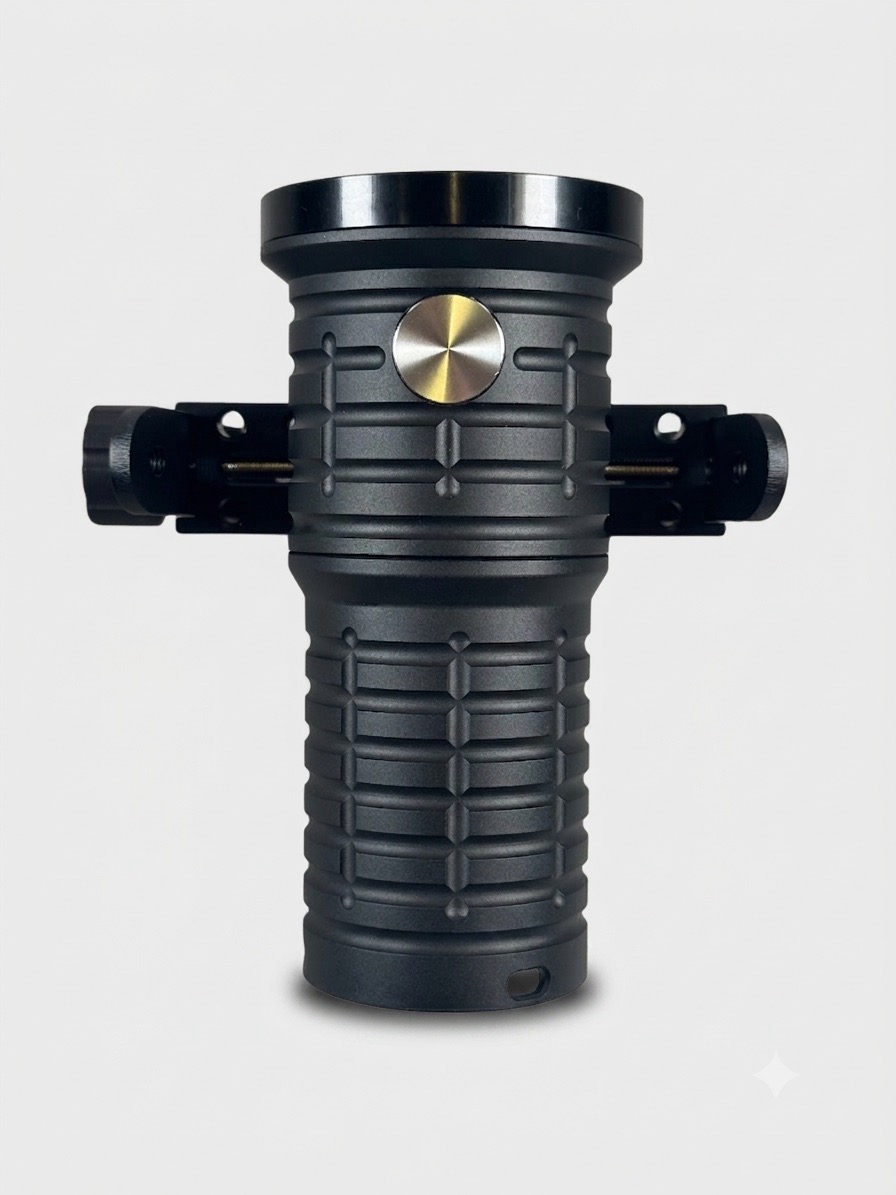

- Piezo Switch: Mechanically simple and ultra-durable. Responsive and dead-simple to operate, even with heavy dry-gloves. No magnetic rotating rings that can jam with sand.
Radically Intuitive Handling

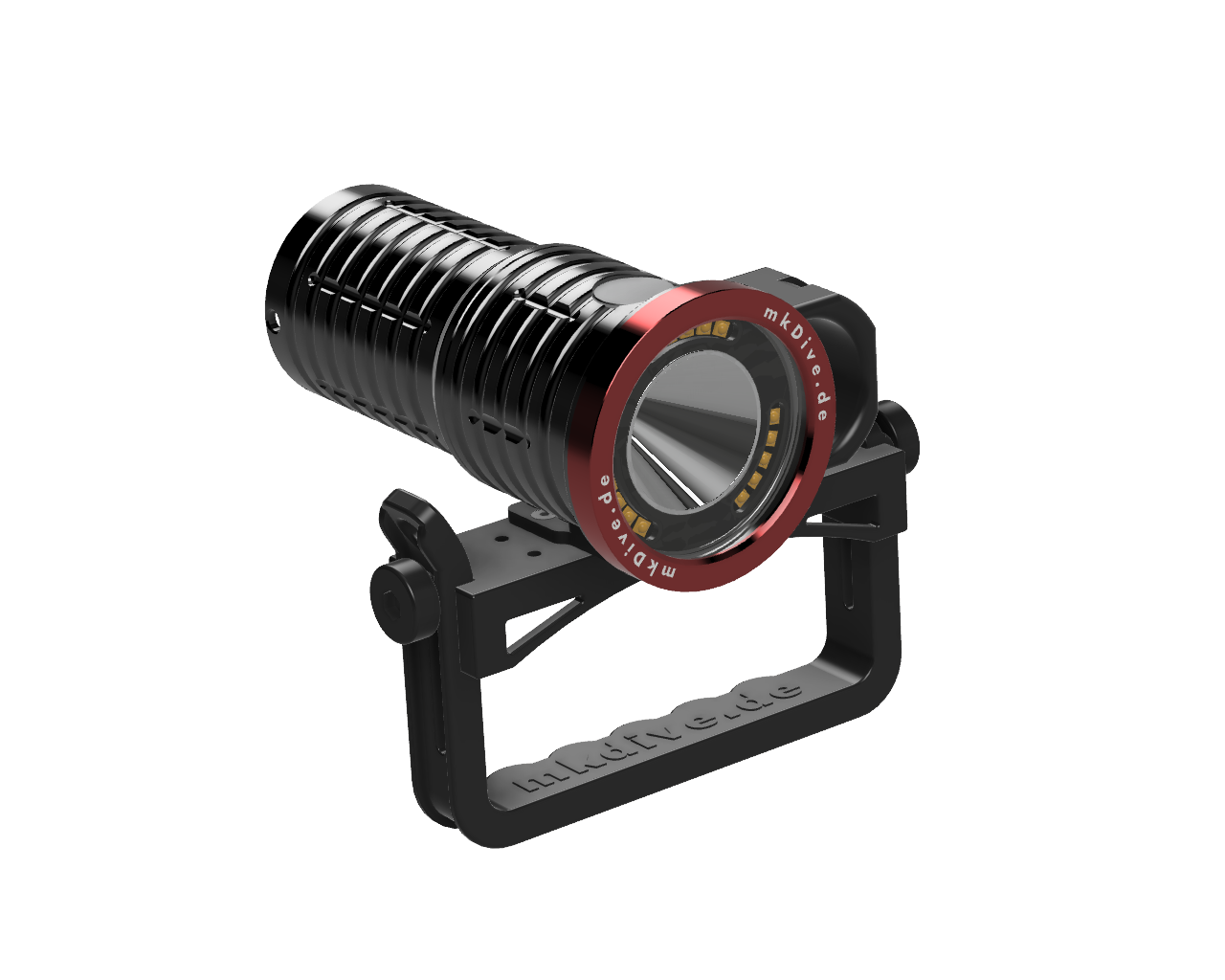

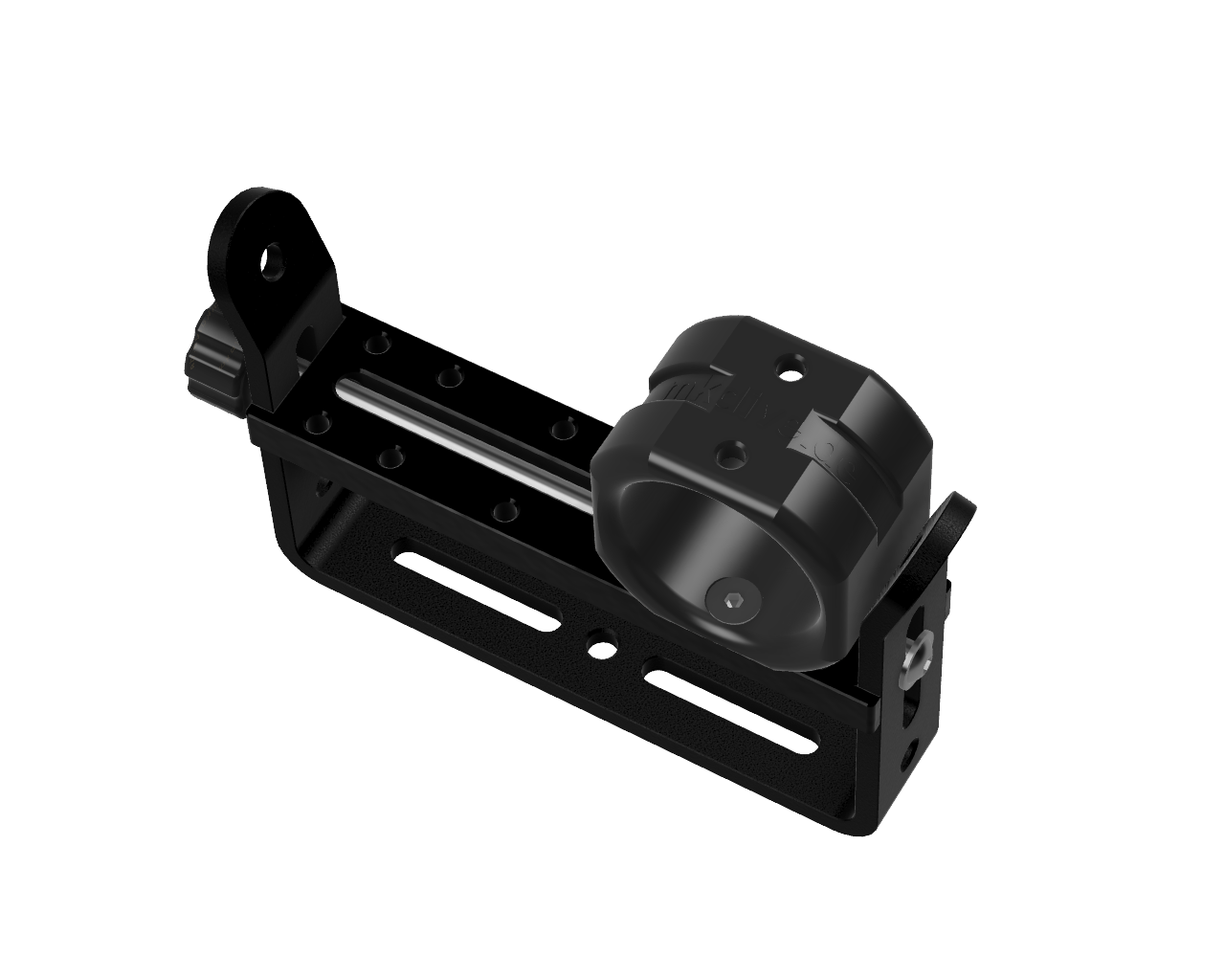

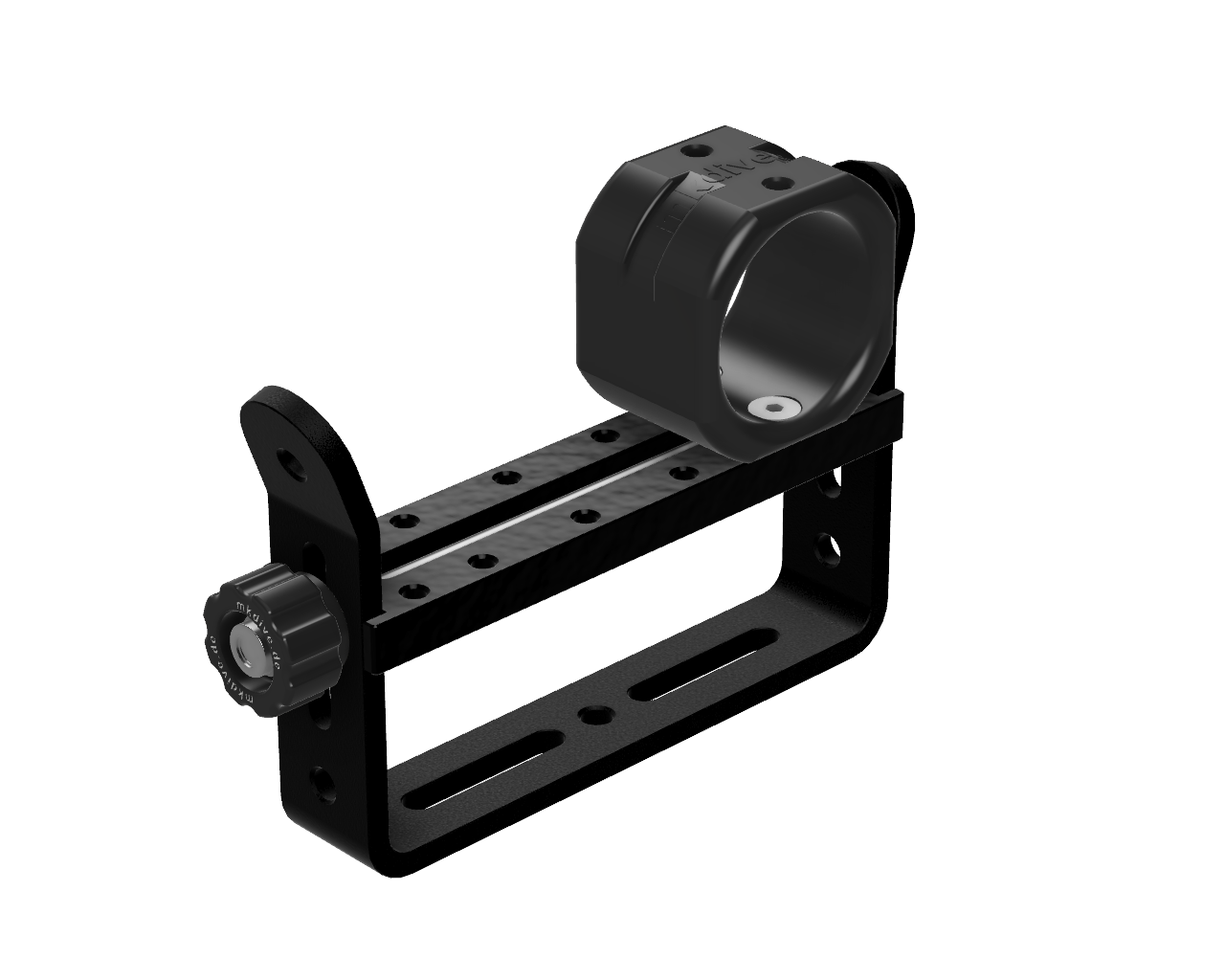

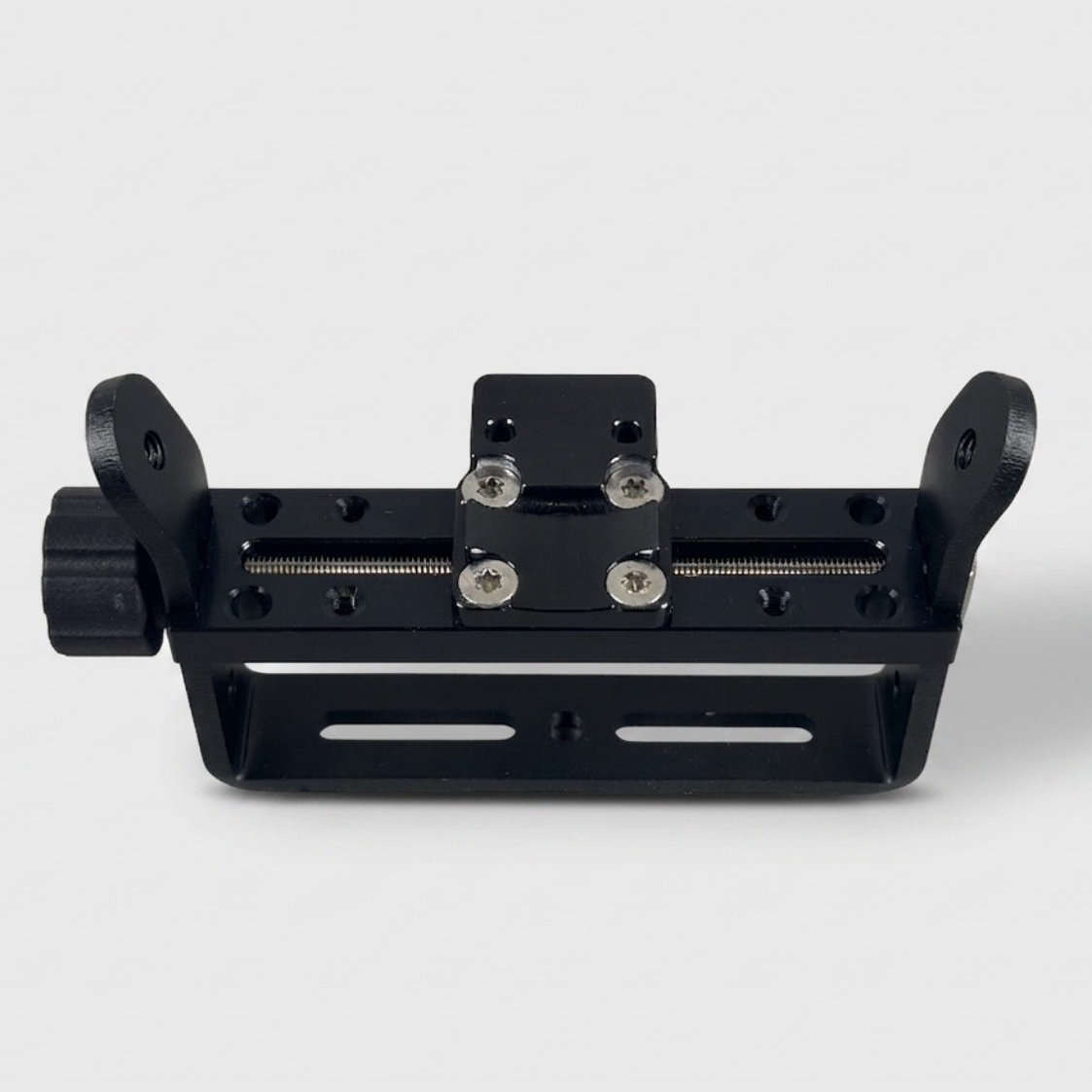

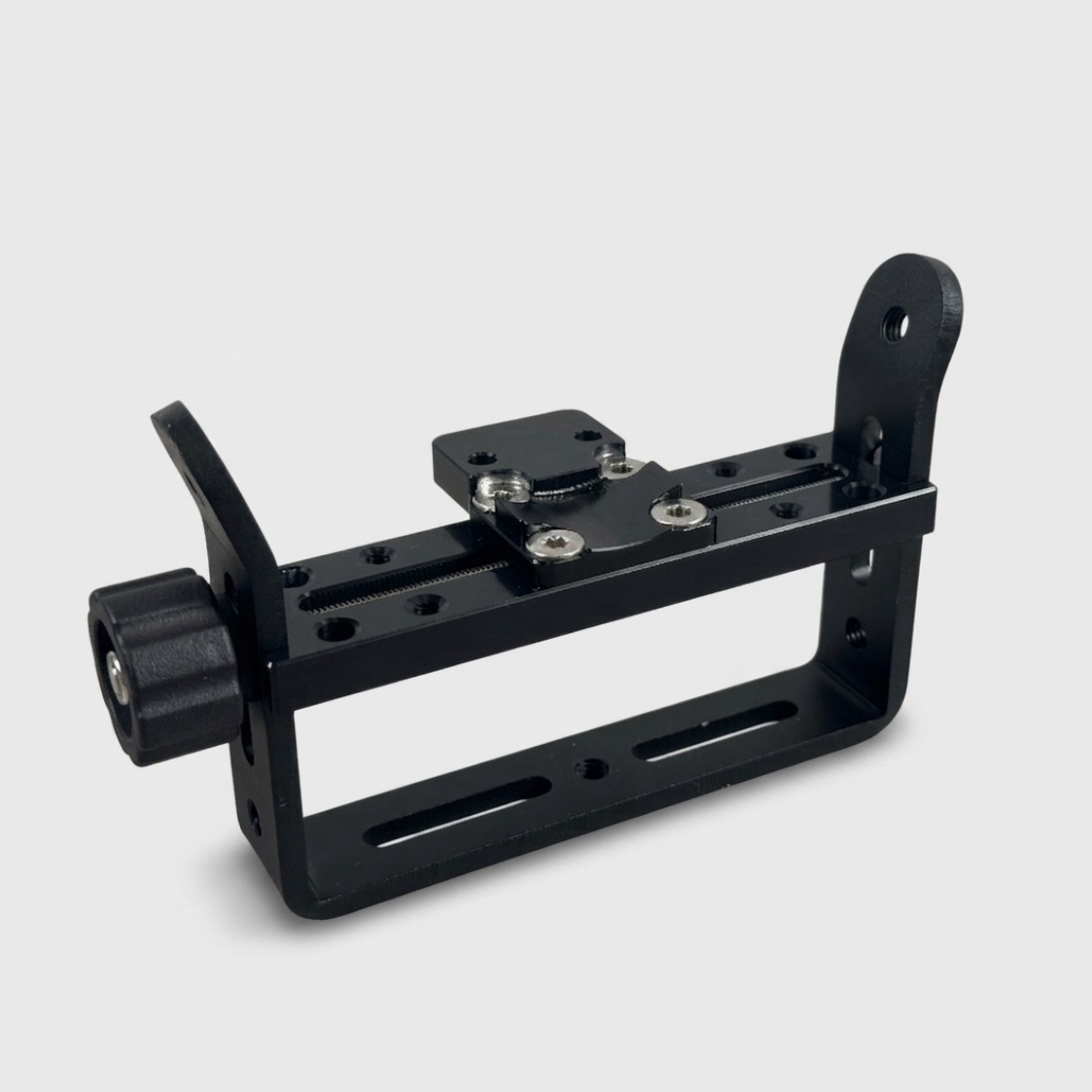

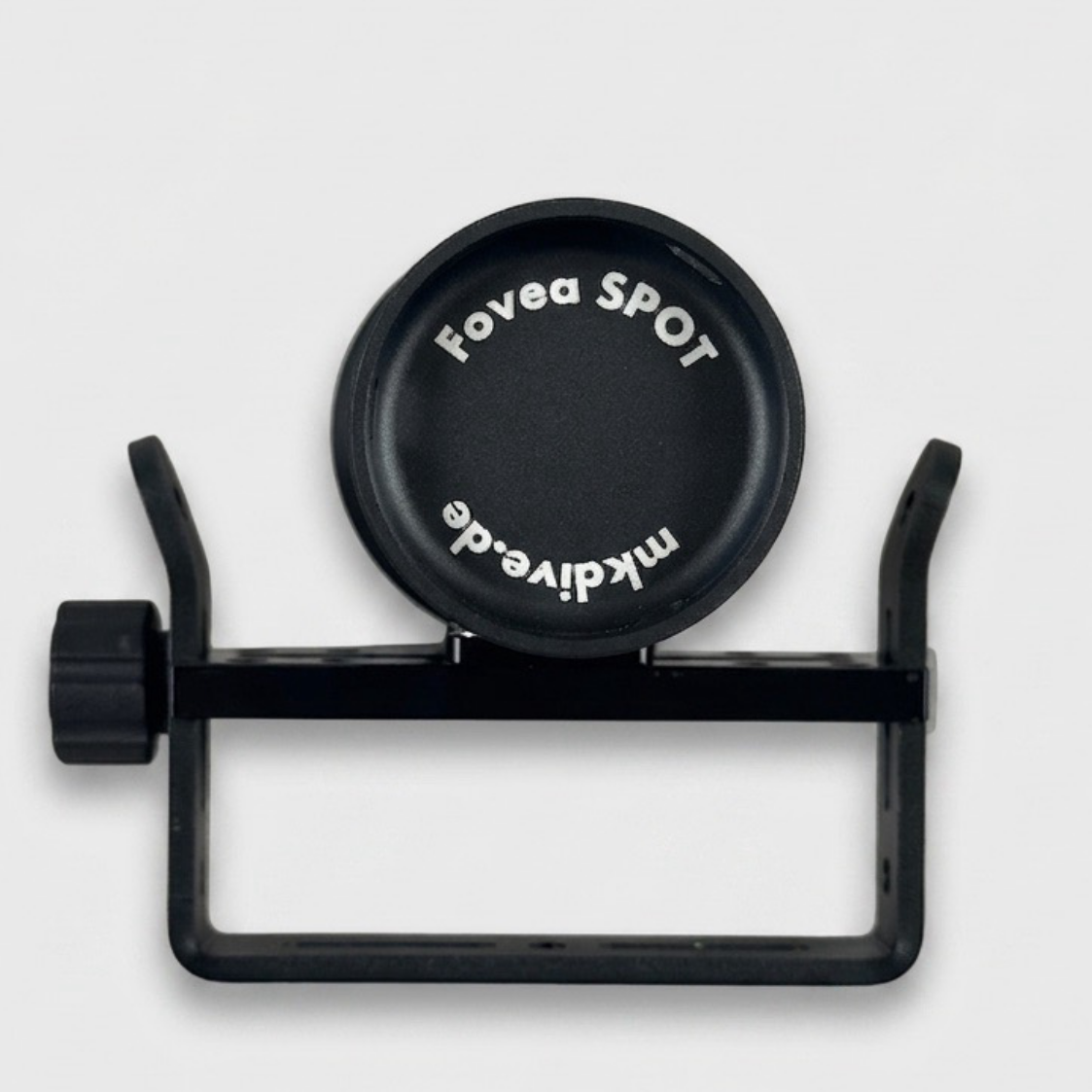

Straightforward solution for Goodman-Handle operable with one hand. Made out of aluminium.
Redundancy

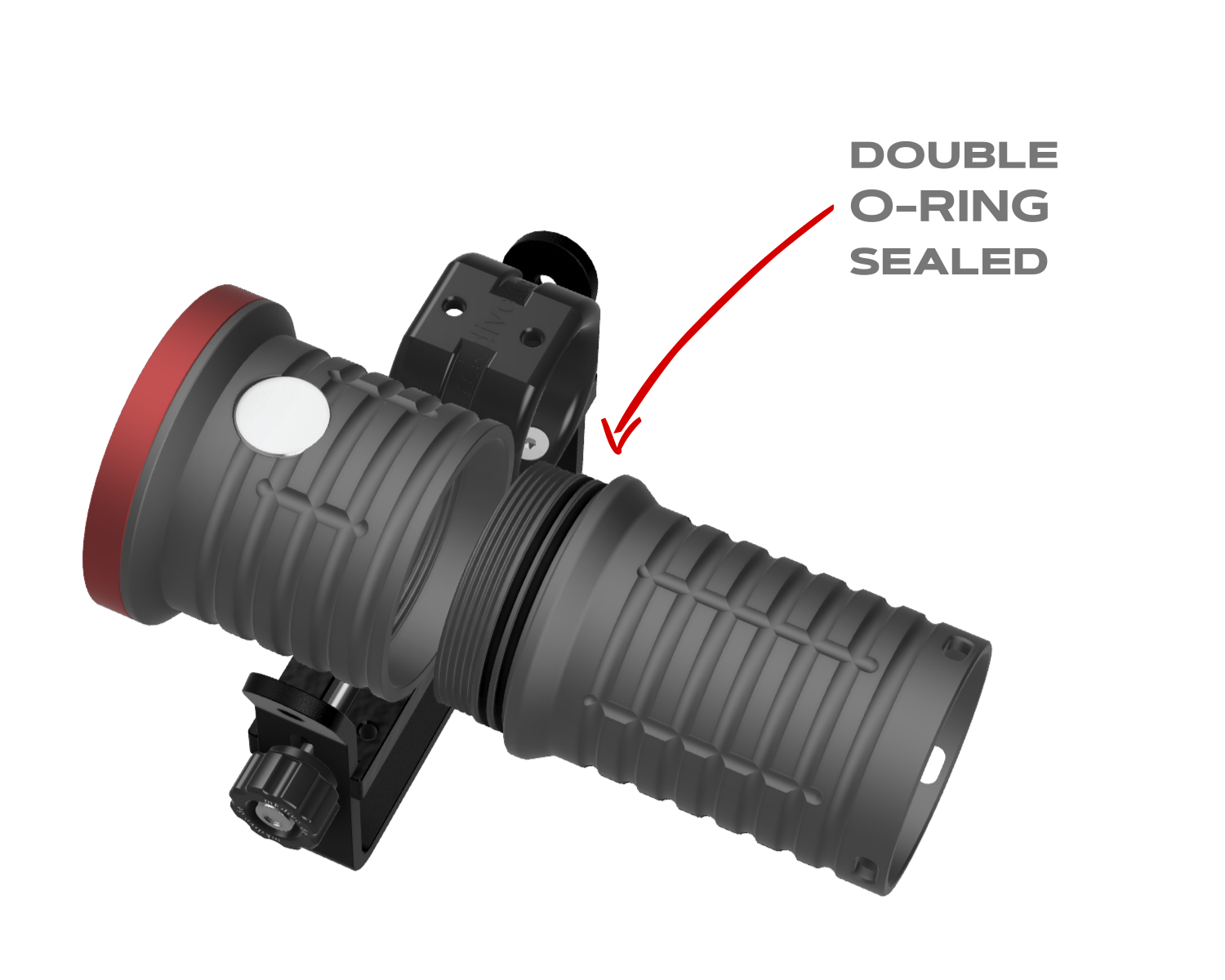

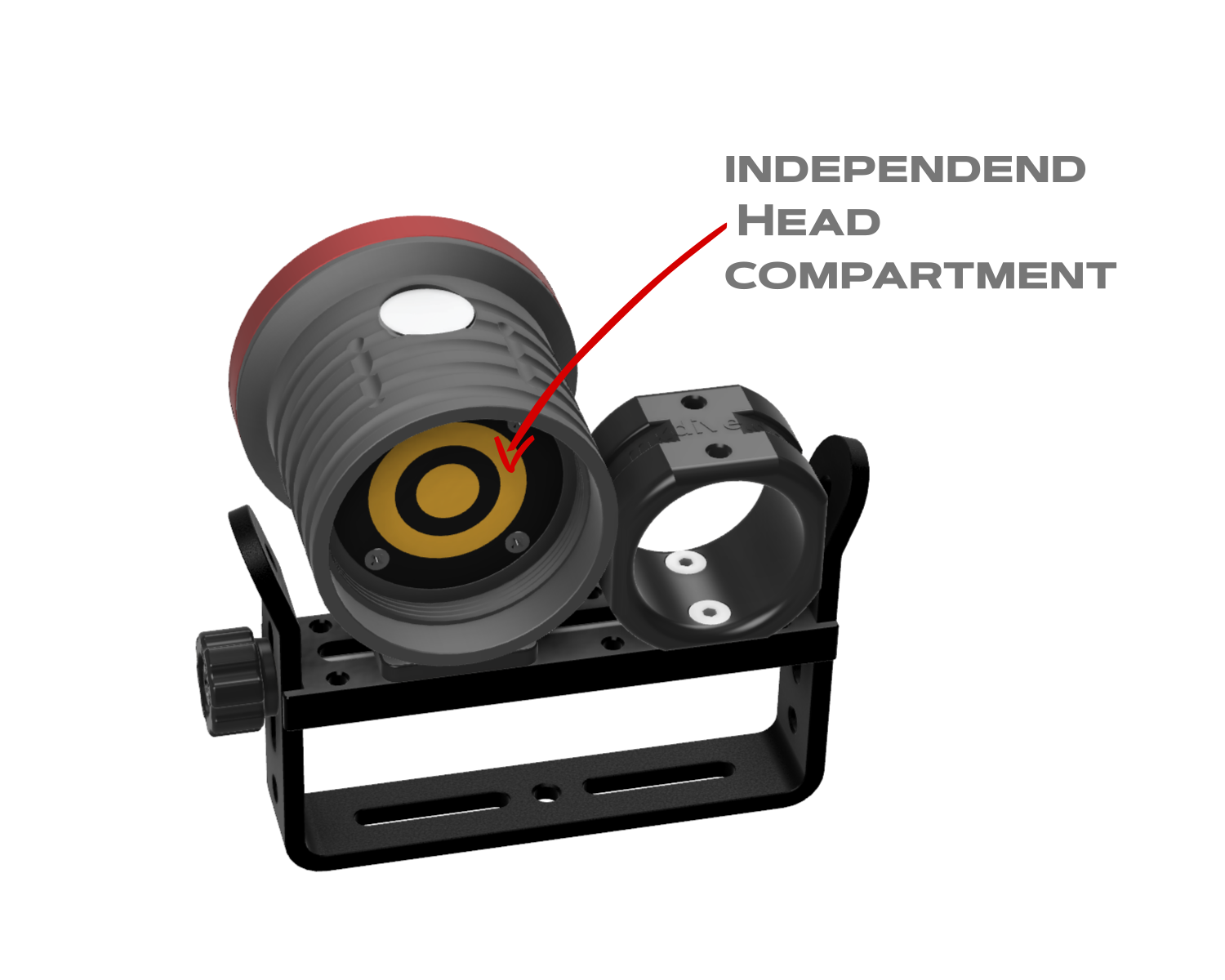

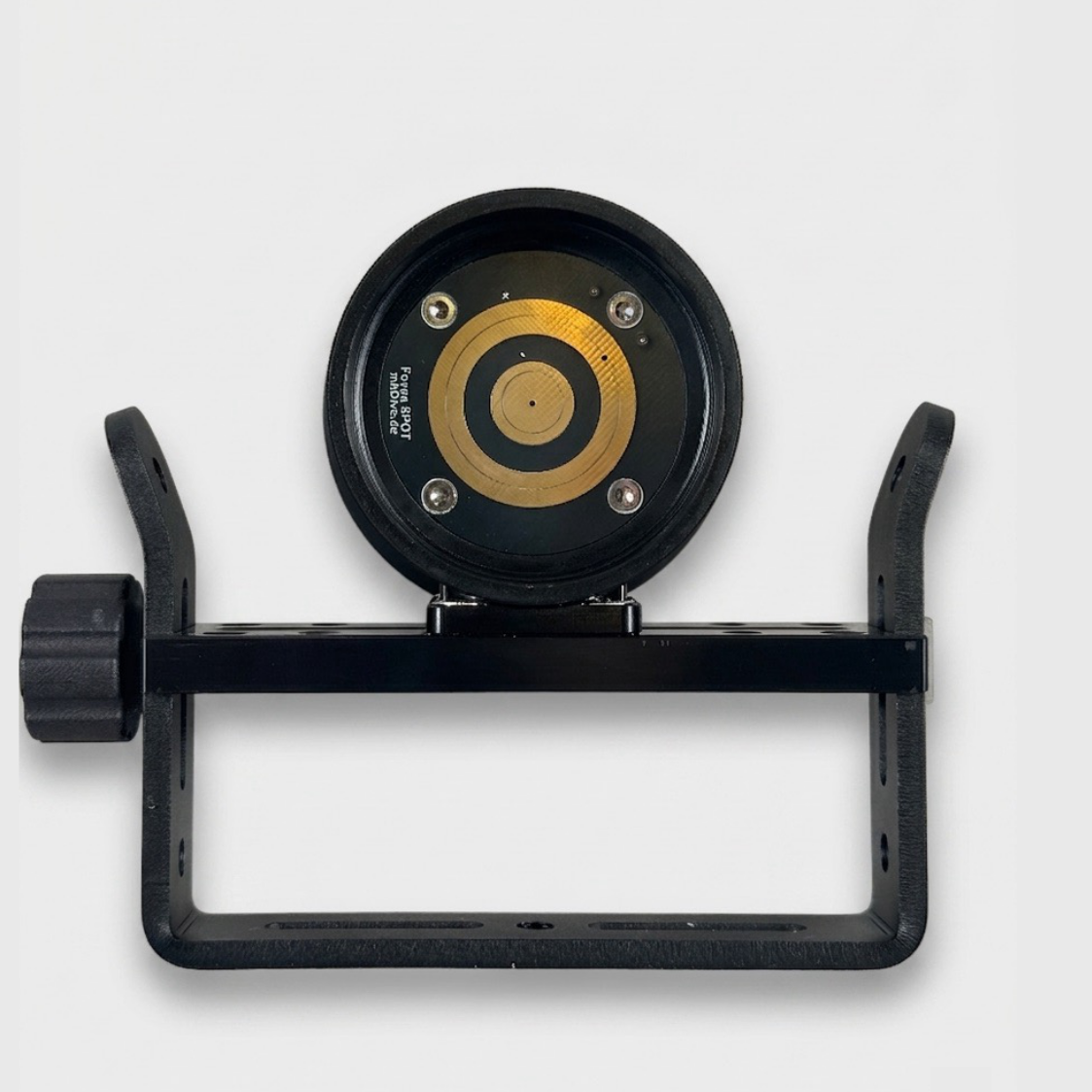

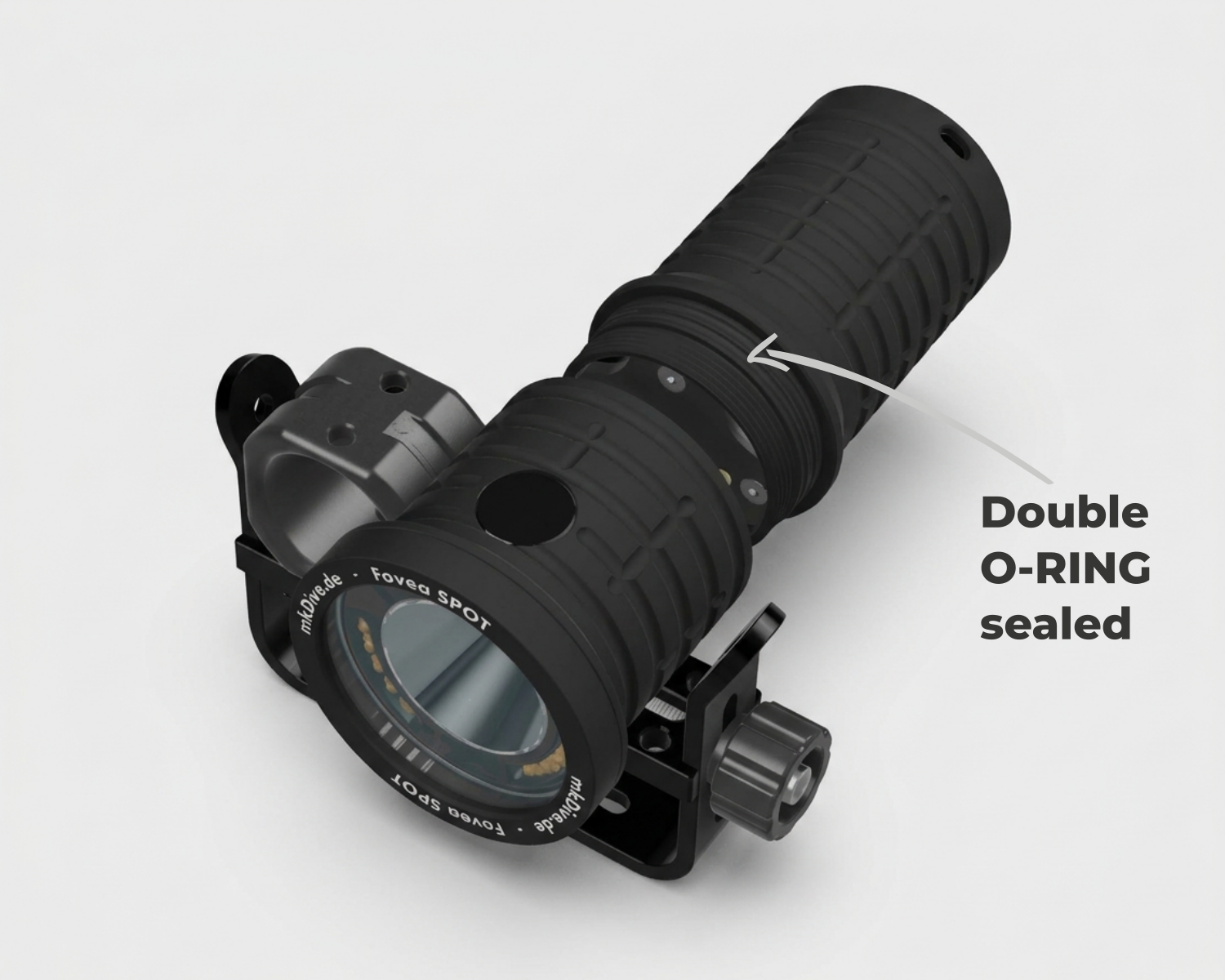

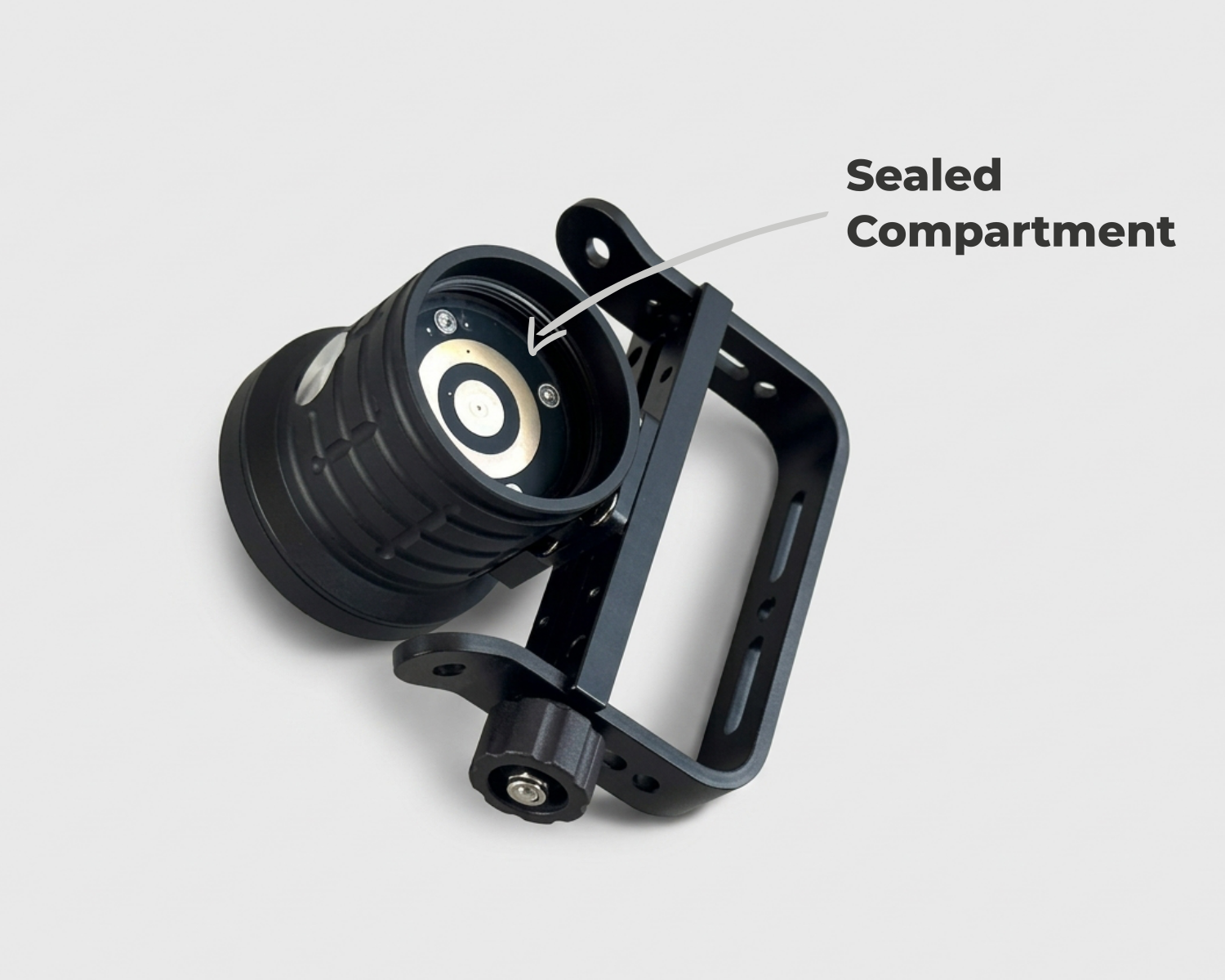

The light head is completely sealed and separated from the battery compartment, protecting the sensitive electronics even if the battery compartment floods. To prevent water ingress in the first place, the battery housing is sealed with two redundant O-rings for maximum safety.
Technical Specs & Burntime
Technical Specs
-
Light Source: 1× CREE® XHP-50 (spot) / 15× CREE® XP-G3 (video ring)
-
Max Power Output: 35W combined
- Voltage Input: 8V – 17V
-
Colour Temperature: 5700K
-
Max Depth Rating: 150m (490ft)
-
Material: Black/Red Anodized Aluminum & Stainless Steel Controls

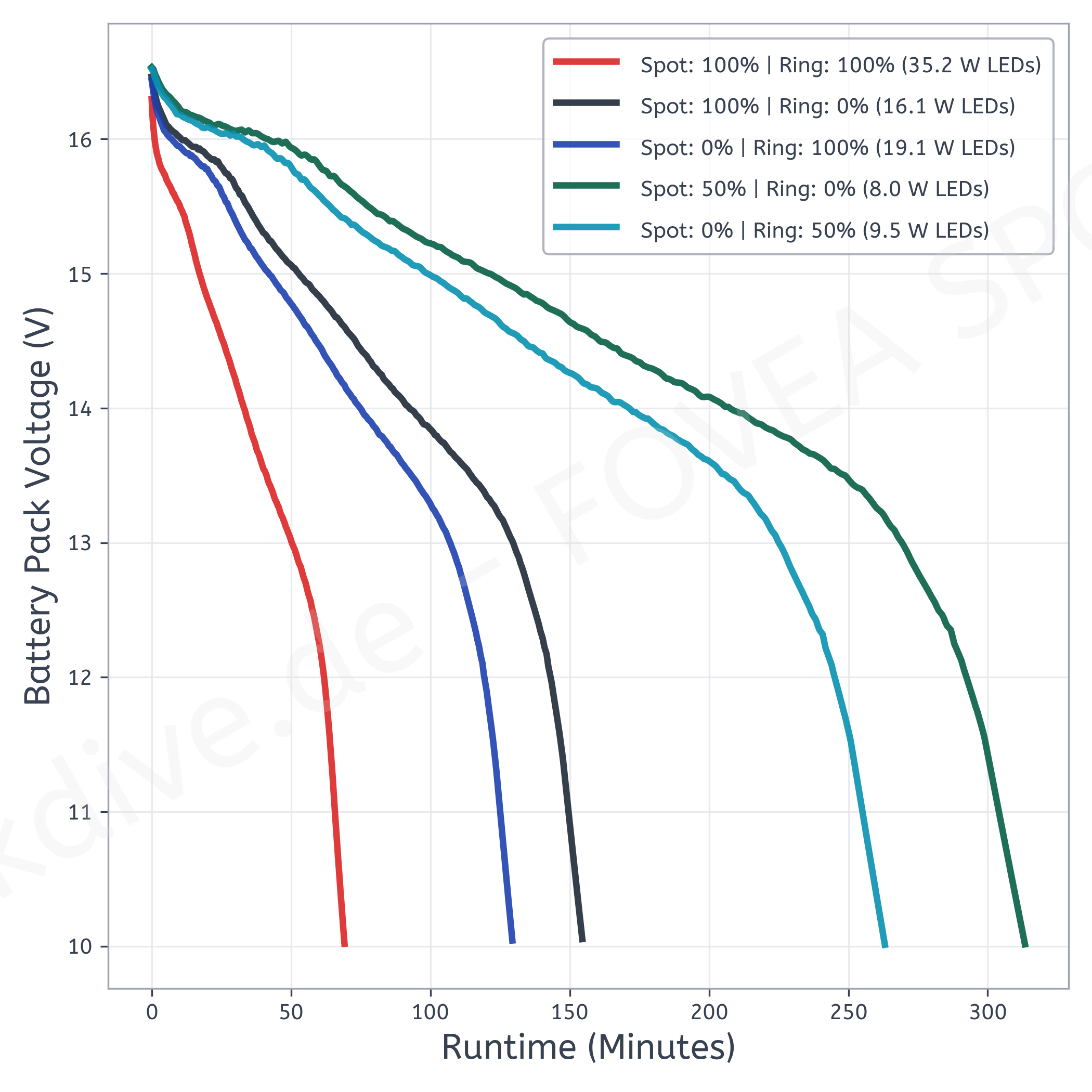

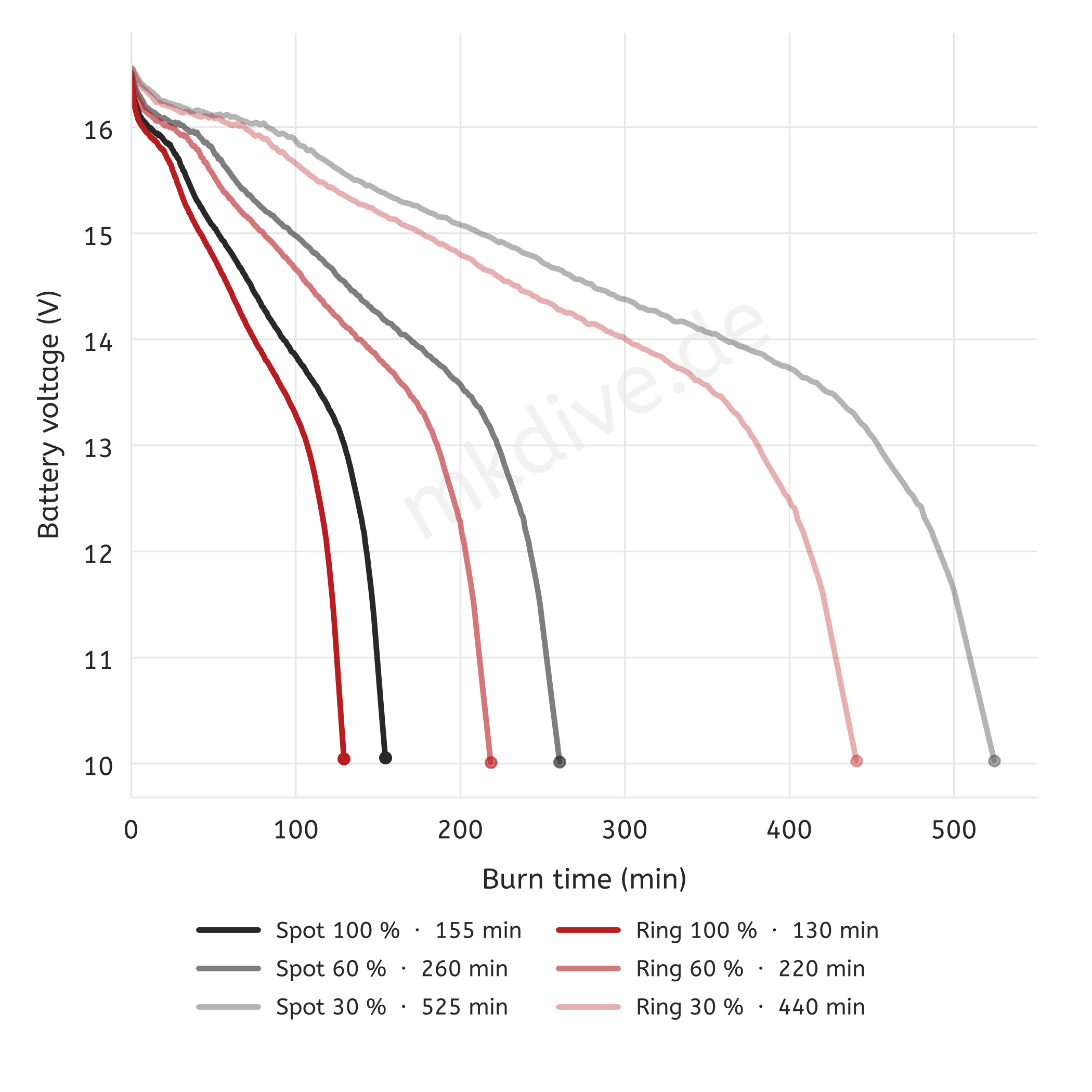

Burntime
* Samsung INR18650-35E, room temperature. Cold water and aged cells shorten burn time.
** Simulated for a 3s4p tank (13.8 Ah).
User - Manual
Order FAQ
Thank you to everyone who backed the FOVEA Spot so far. The first 50 units are sold out and in the water. All of them were funded by customers who paid up front and waited — that trust is what financed the next development steps. It is not taken for granted.
Batch 3 is now open: 20 units.
This is a pre-order, not stock. Units are built to order in Germany, and payment up front is what buys the material. In return you get a serialized unit from a small, fully traceable batch.
- When will it ship? Production starts once the batch is filled. Expected shipping: November 2026.
- Why pay in advance? mkDive is a one-man operation with no outside funding. Your payment buys the aluminum, the optics and the electronics for your light.
- Do you ship worldwide? Yes. We ship globally from Germany with tracking. Orders outside the EU are sent without German VAT; import duties are handled by the customer.
- Can I cancel? Yes, as long as the batch has not gone into production. Just write to us.
| Weight | 0,5 kg |
|---|---|
| Dimensions | 20 × 20 × 15 cm |
| Light source | 1× CREE® XHP-50 (spot) / 15× CREE® XP-G3 (video ring) |
| Power | spot 15 W · video ring 20 W |
| Colour temperature | 5700K |
| Light distribution angle | 5° spot / 120° video ring |
| Max. operating depth | 150m |
| Material | Anodized Aluminium |
| Power Source | Battery Pack, Batterypack & External, External |
Product safety
Manufacturer information
mkDive - Technical Diving Equipment UG (haftungsbeschränkt)
Adlerstr. 55
76137 Karlsruhe
Person responsible for the EU
Maximilian Klug
Safety instructions
WEEE-Reg.-Nr. DE 69220770
