A versatile double pass-through adapter for drysuit heating systems. Available for Apeks or SiTech inlet valves. Choose the version that fits your setup: bare (no cables) , or with 1, 2, or 3 pre-installed cables & cord grips.
Worldwide payment and shipping
Custom-made unique items – delivery by arrangement
Heating Inlet “Apeks”
Price range: 49,00 € through 279,00 €

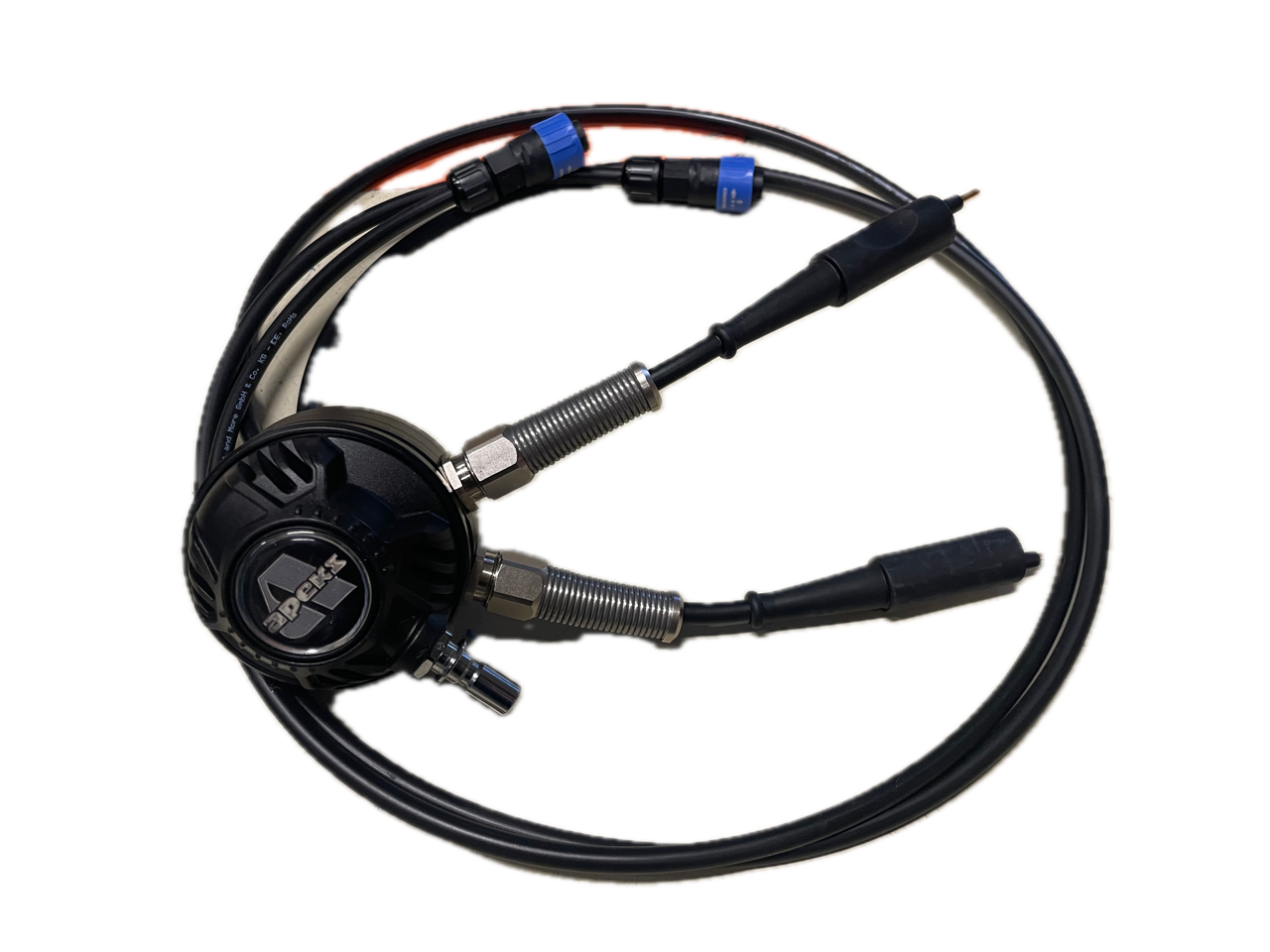

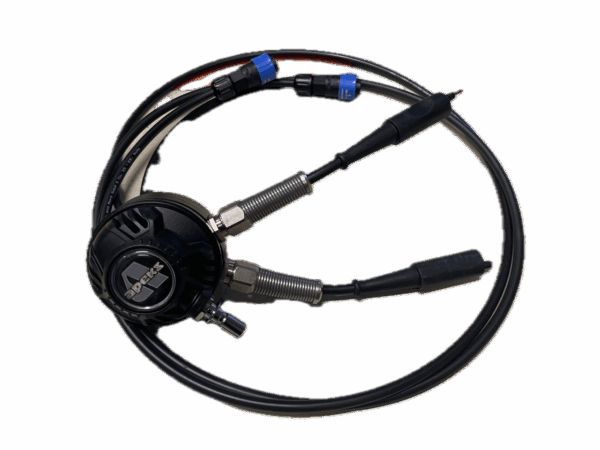

This is a universal double connector adapter, precision-made to be installed between your drysuit’s inflation valve and the suit itself (adapter height approx. 22mm) . It allows you to run multiple heating elements (vest, gloves, socks) from a single external battery source.
The key advantage is flexibility. You can select the exact configuration you need:
-
Valve Compatibility: Choose the version machined to fit either Apeks (approx. 38mm diameter) or SiTech inlet valves. The appropriate sealing O-rings are included .
-
Cable Configuration: Select the option that matches your heating system:
-

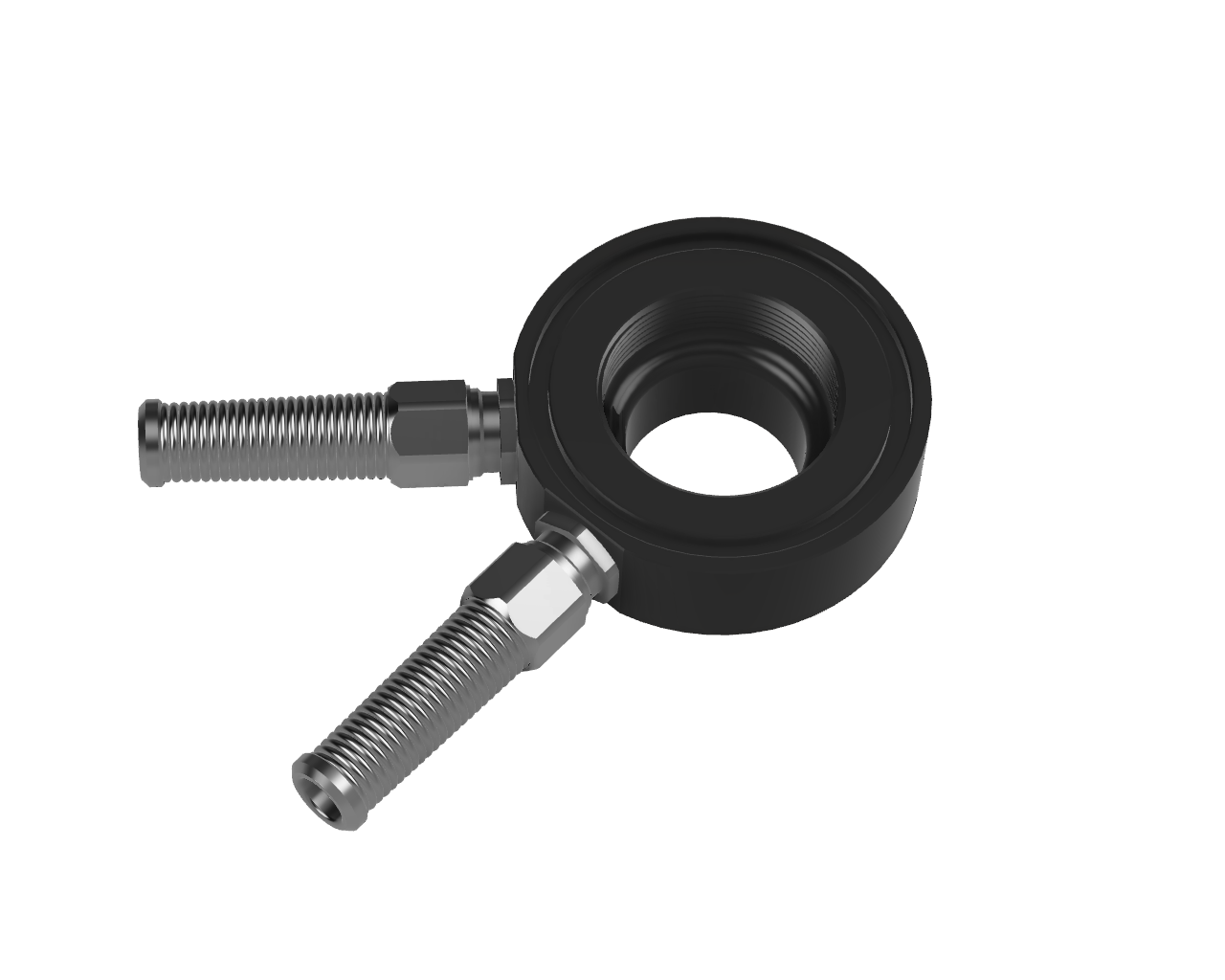

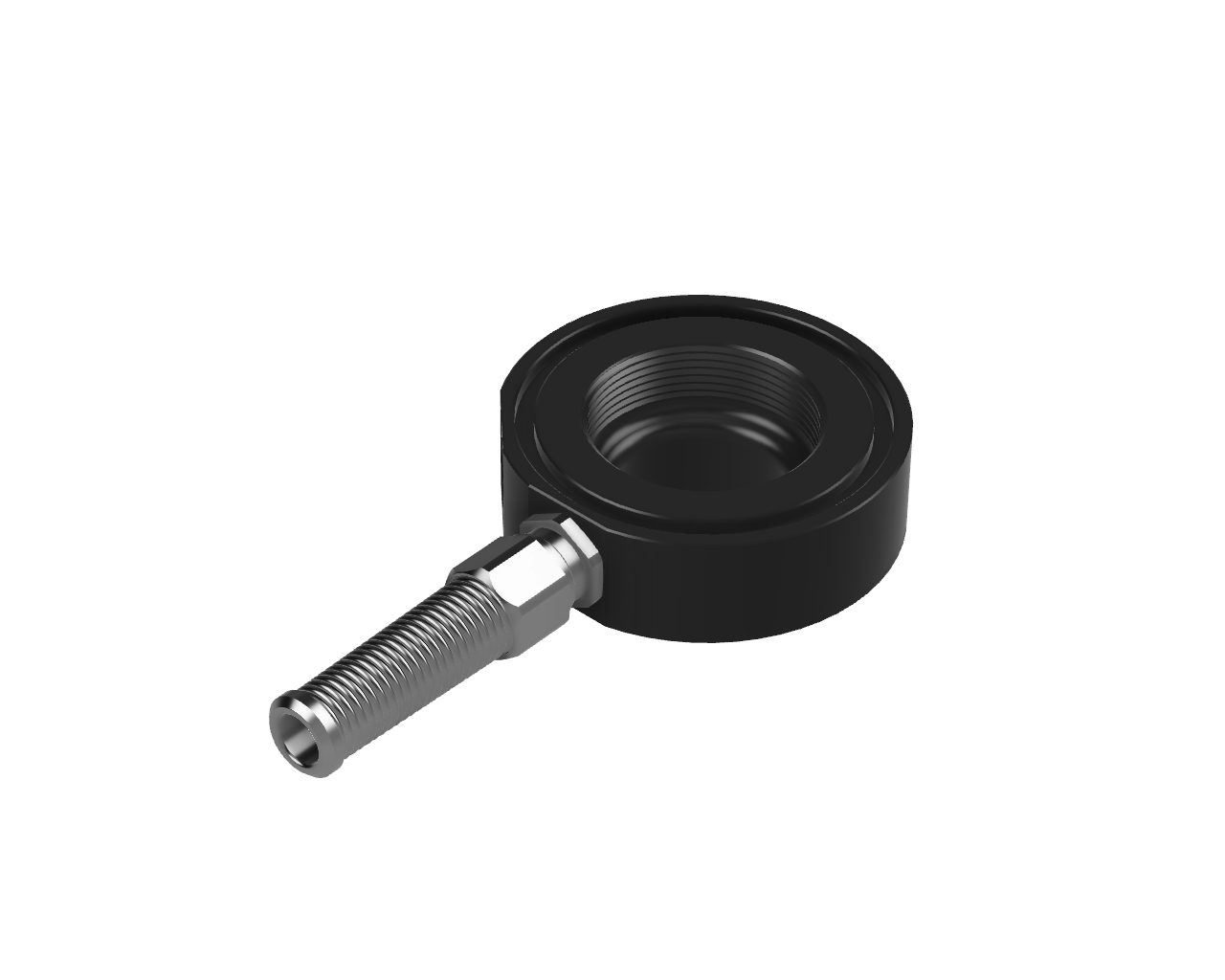

Bare Version: The adapter body only, with pre-drilled ports. You install your own cables and cord grips.
-

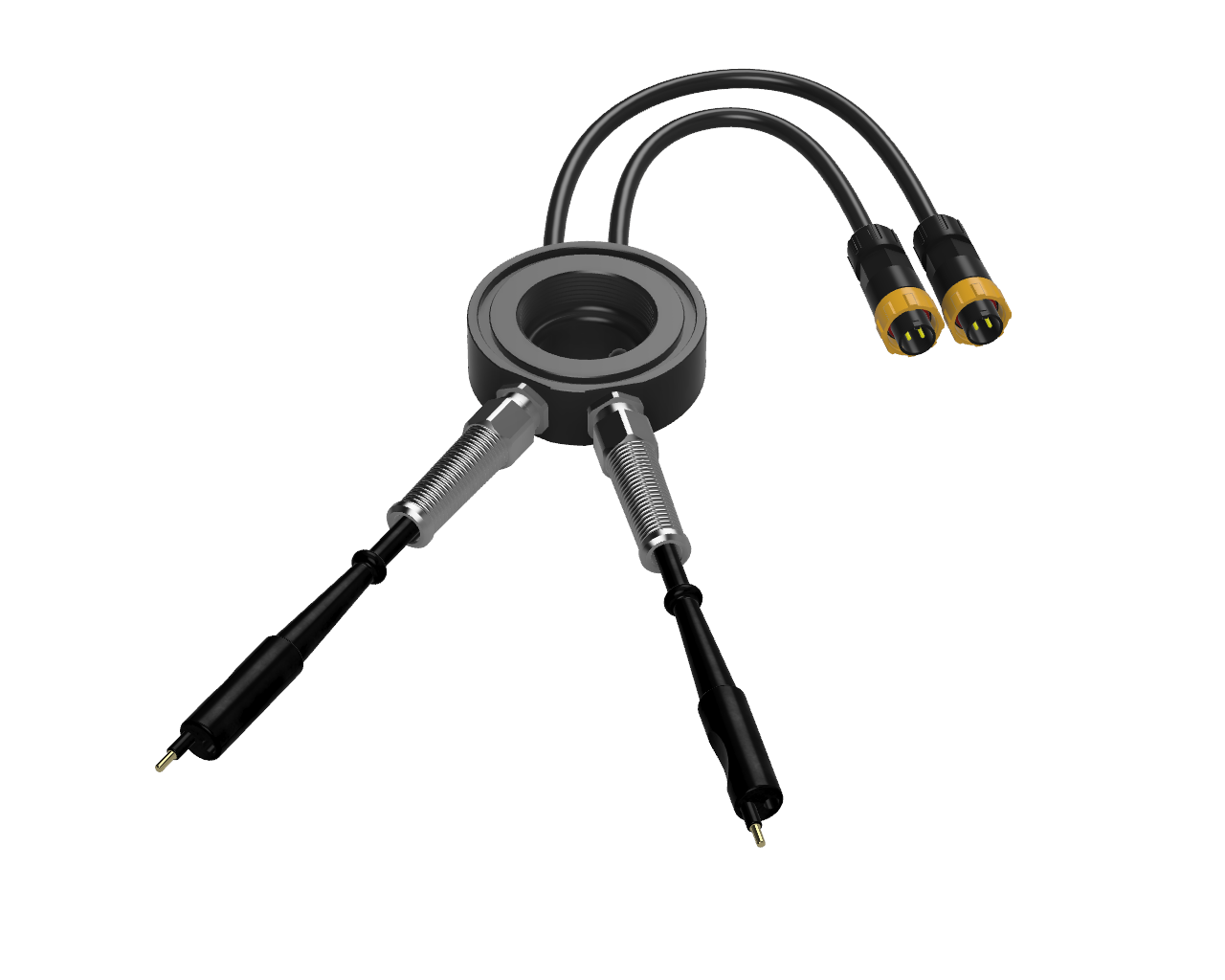

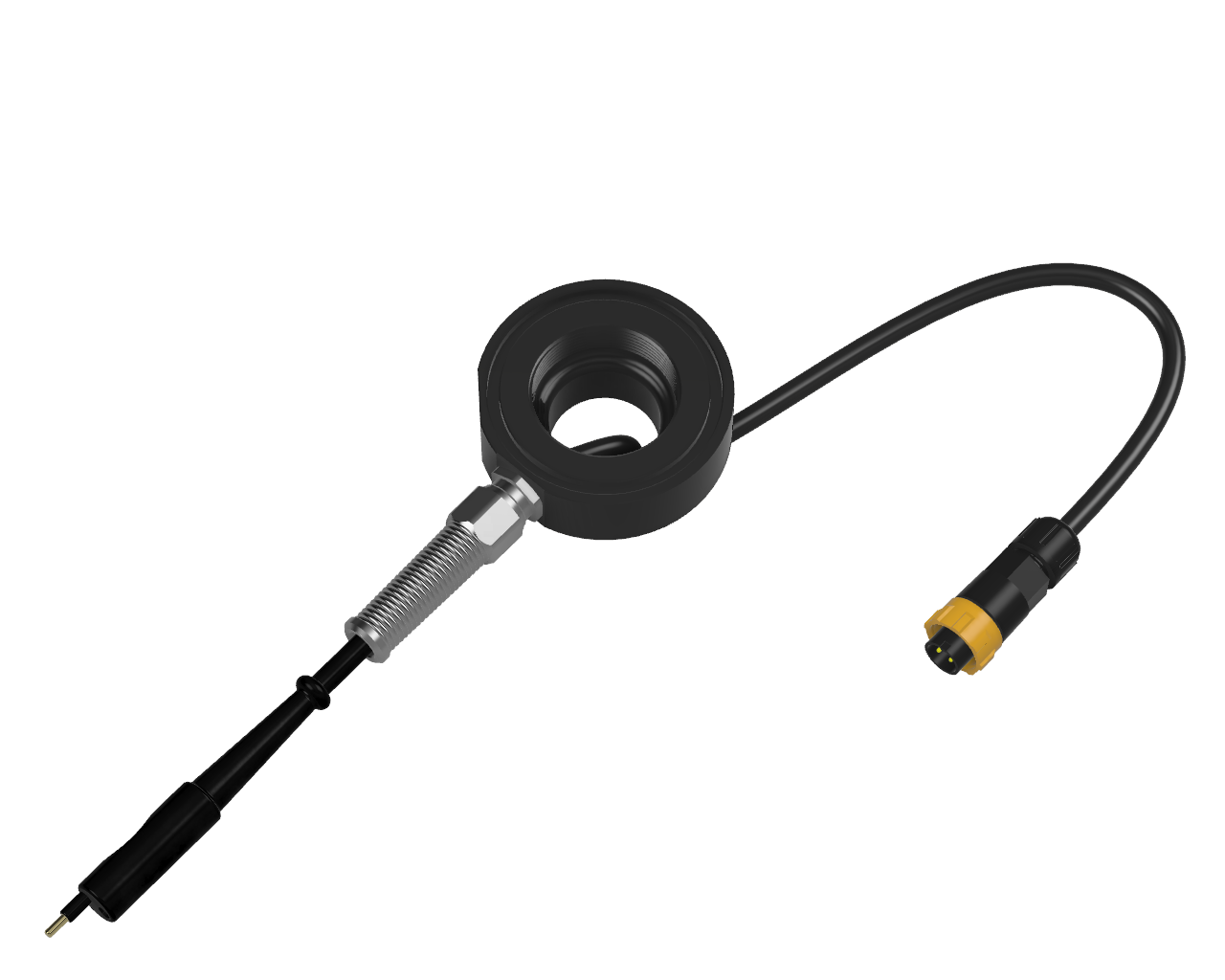

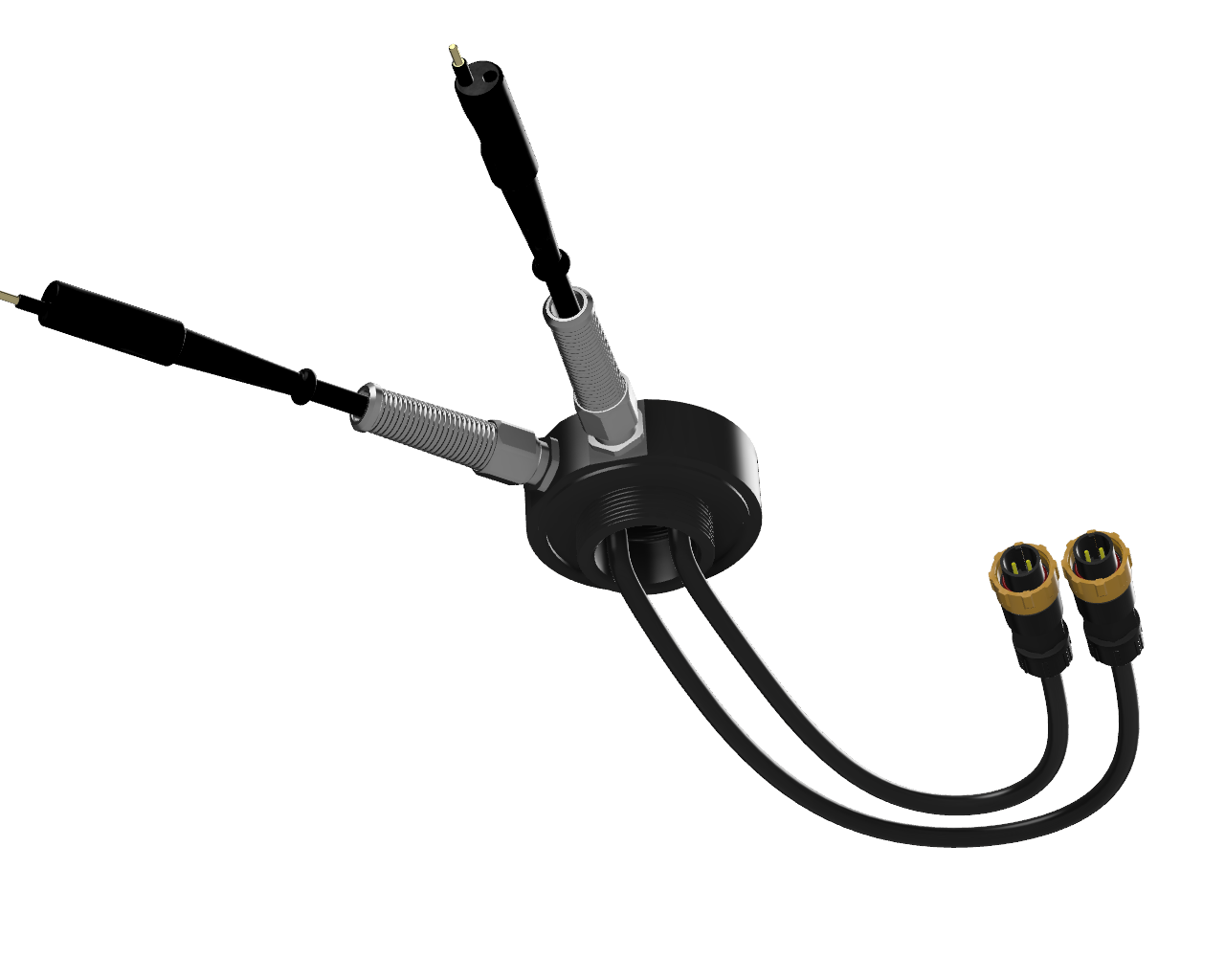

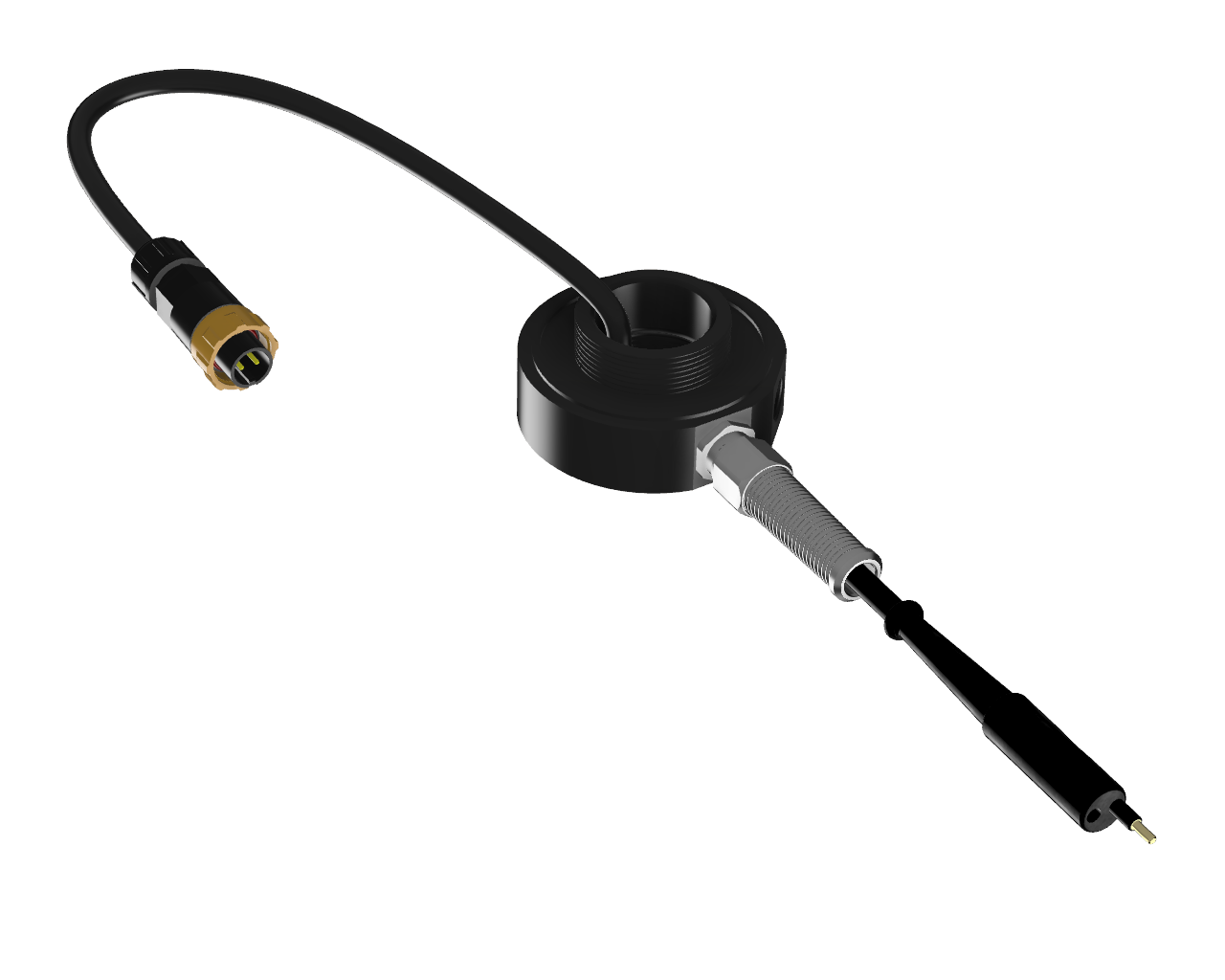

1, 2, or 3 Cable Version: Comes complete with the selected number of pre-installed cables and watertight cord grips. Internal cables (approx. 40cm long) connect to your heating vest/gloves, while external cables (approx. 20cm long) feature your choice of connector (e.g., Santi, T-Dean) to plug into your battery .
-
Note: doesn’t include Apeks Valve.
| Weight | 0,2 kg |
|---|---|
| Dimensions | 8 × 30 × 5 cm |
| Ports | one Port, two Ports, three Ports |
| Cord | without, WAM-Cord |
